Einleitung

Using a hex 2.0 driver, you will remove the top cover. using a pair of tweezers, you will then be able to remove and replace the Brck Motherboard.

  1. rKFZjLAHOcUbQkma
    • Stand the device on its side so the antenna is sitting on the top.

  2. KOceQjAvYum5UUMi
    KOceQjAvYum5UUMi
    4QSYxfZYiP1uOLls
    • Use the tweezers to grip the neck of the antenna(the part closest to the device).

    • Use opposite hand to twist off the body of the antenna.

  3. hIsSTGQ4eFDvdqf4
    • Place the face of the device showing BRCK face up.

  4. YmU6MudTPLigt6yN
    • Remove the four screws(4mm hex head) on the corners of the device with a Hex 2.0 Screwdriver.

  5. yTbOtBGblLV21Pbr
    • Remove the top cover.

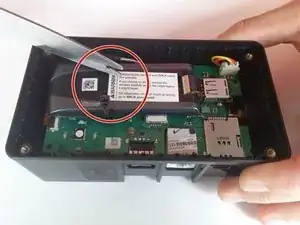

  6. PG2EoDheB3JXQr6E
    • Cut the black zip tie holding the modem down.

    • Caution By cutting the zip tie, you void any manufacturer warranty you may have on the device.

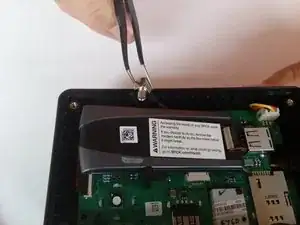

  7. iRjbuBDSwKBwFX3F
    • Remove the connection located on the edge of the modem.

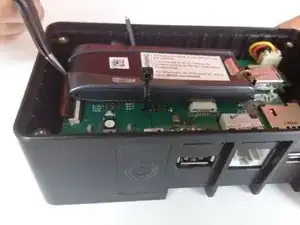

  8. 1usVt4QADf2WTuCB
    1usVt4QADf2WTuCB

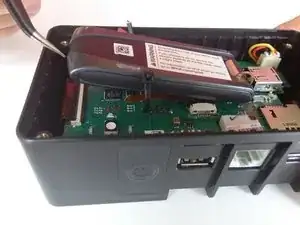

    T1TkhsAWlH1XIU2x
    • Slightly lift the modem to reveal the brown ribbon connector and metal connection plate, located on the bottom of the modem.

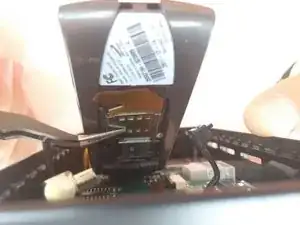

  9. 3DwgdqL5btj5KEcB
    3DwgdqL5btj5KEcB
    JHUmDQKtDC3vSTUv

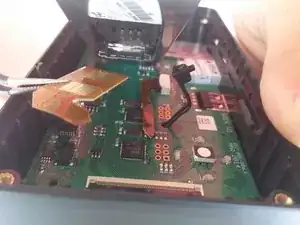

    UMGFWbfknSSTWCWi
    • Using your tweezers, gently push on the metal plate and slide it down toward the base of the modem to release the locking mechanism.

    • Lower the plate and gently pull the ribbon out of the face plate.

    • Caution Be extremely gentle while preforming this step. The ribbon is brittle and prone to breaking if bent too much. Make sure you go slowly so that you do not damage the device.

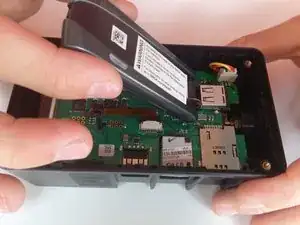

  10. AWsPkaffO1JrqAlW
    AWsPkaffO1JrqAlW

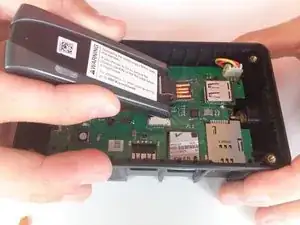

    O5LeZds1ZPFXwHiq
    • Remove the modem from the device.

  11. M3yWuR4XO3fOGLDW
    M3yWuR4XO3fOGLDW
    fgVYlCauJhR5gLUA
    • Remove the nut and washer from the RF connector, located where the antenna was connected.

  12. hbwIZs3ySQ2A1IhC
    hbwIZs3ySQ2A1IhC
    o5OayQLOiLZiDFGP
    • Unplug the red, black, and yellow wire connection by lifting up.

  13. 46CfWC5OwFOBgiKZ
    46CfWC5OwFOBgiKZ
    RtKKXIUfZHkKsE4E
    KiV5Gx1LDkuTncAE
    • Carefully insert tweezers under the black tab, and lift to release the clip.

    • Slide the ribbon out from under the clip to free the motherboard.

  14. TbDfLALNEpRuYZYF
    • Remove outside rubber covers by lifting them out of place.

  15. RGrgdj6XefLZ2Qum
    RGrgdj6XefLZ2Qum
    dwPqriu1HDu4d4Lk
    kIWLyPbonTLIG63I
    • Slowly lift the motherboard out from the device by lifting it from the end next to the ribbon connection.

    • Lift and pull out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
