Baby Einstein Take Along Tunes Battery Socket Replacement

Geschrieben von: Shreya Sunny
  • Kommentare: 0
Baby Einstein Take Along Tunes Battery Socket Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

In this guide, you will learn how to replace the battery terminals

  1. h6RqwiFSHcnNnuAM

    • Set the device on it's face with the back facing up.

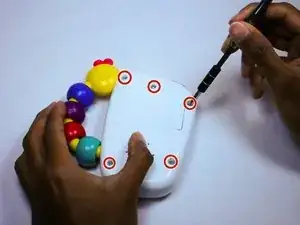

  2. 1ODFZM3VBNMjFiRK

    • Begin by removing all highlighted screws with a using a Phillips #1 Screwdriver.

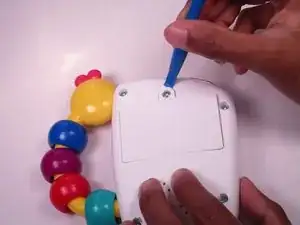

  3. QLKDIY1aMGrujbwH

    • Remove the battery plate with a plastic opening tool and set it aside.

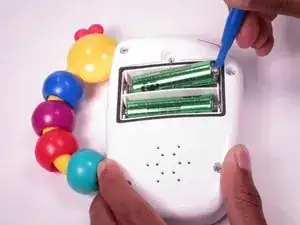

  4. lRklc1xEUirGZNPy

    • Remove each battery with a plastic opening tool and set them aside.

  5. 2FDjIIvNZkK4RSbP

    • Separate the device in two parts by using the plastic opening tool.

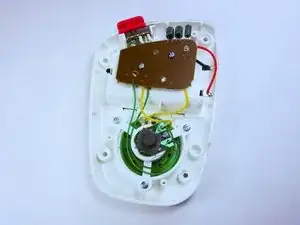

  6. 2FKeG6IEv5b2mukG

    • Remove the top piece and place it aside, keeping the bottom half with the mechanics.

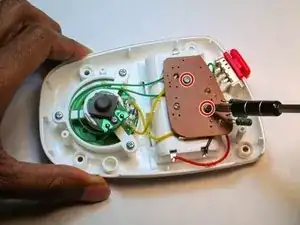

  7. 3MCbkEGWIrlt5pHd

    • Remove the highlighted screws using a Phillips #1 Screwdriver.

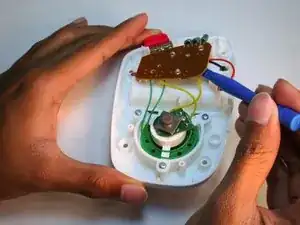

  8. 54ApmX6jwrqhAen3

    • Use the plastic opening tool and carefully set the LED panel to the side, exposing the wires underneath.

  9. gwmwbsSEMwTwQtdN

    • With the precision tweezers, straighten the metal connectors to remove the terminals from the other side.

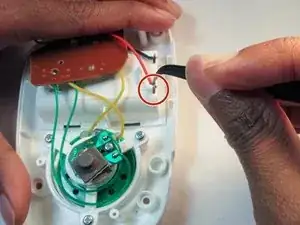

  10. LCy5cbRDWJ2fvNQf
    LCy5cbRDWJ2fvNQf

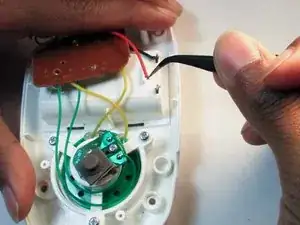

    PhONxLtsesJABIyu

    • Sever the red wire from the metal connector with the precision tweezers.

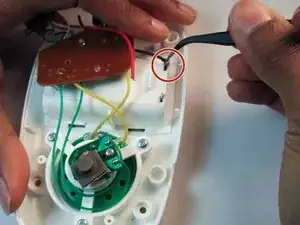

  11. askY6RK3FbDknrPu
    askY6RK3FbDknrPu

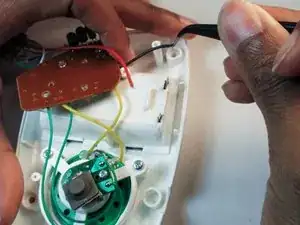

    YPhMBtIRcEXCCrmB

    • Sever the black wire from the metal connector with the precision tweezers.

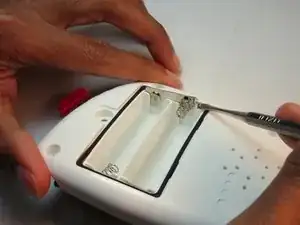

  12. L1J1o1dFQjY5Xn5J
    L1J1o1dFQjY5Xn5J

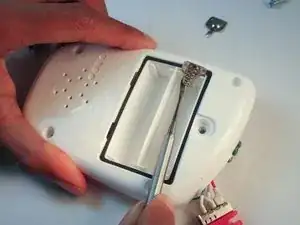

    dNyLFGVkkPYUYp3a

    • Flip the device on its face and remove the battery terminals with a metal spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
