Einleitung

In this guide, you will learn how to remove and replace the individual LED lights inside the device

  1. onDZkCPNMnMDrUSr

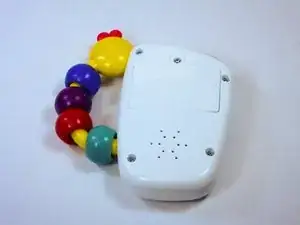

    • Place the device face down on a flat surface, so that the screws on the back are facing the ceiling.

  2. 5wCmTwaSERZIQFa5

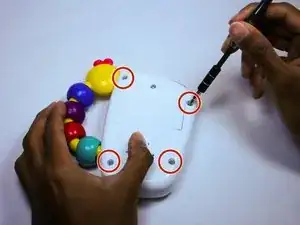

    • Using a screwdriver loosen the four screws connecting the body of the device together.

  3. u1AVUsFyKAZ2WlLT

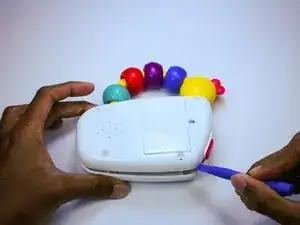

    • Once unscrewed, pop the back of the device off using the plastic opening tool.

  4. wFr61NBWL1iv1ZhR
    • Once unscrewed, take the back of the body and put it aside. We will be working with the front part of the device.

  5. xWPWJMsuVcddruBP

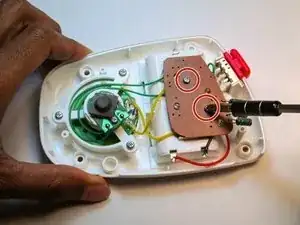

    • Using a screwdriver loosen the screws on the lights panel.

  6. p2OGamOvSd2jHChE
    • Using a plastic opening tool pop the light panel off. Be careful as to not rip any of the wires from the panel.

  7. npZHmDTKCDEbpp4a
    npZHmDTKCDEbpp4a
    Lsid2jOjB2l5FQOR

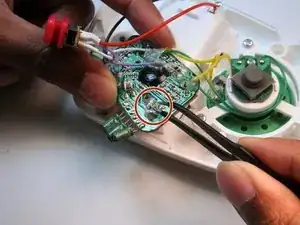

    • Carefully pull the LED lights off with a pair of tweezers. Once off, put in and connect a replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
