Back Panel Disassembly

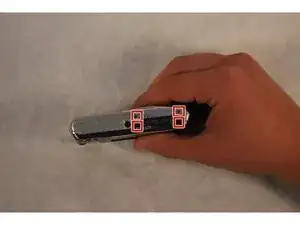

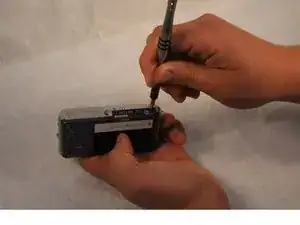

With the battery door facing upward, take your PH000 screwdriver and remove the 4 mm screws from the bottom of the device.

After removing the screws, rotate the device to where the micro USB port is facing up.

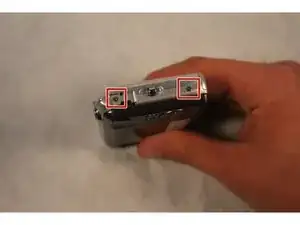

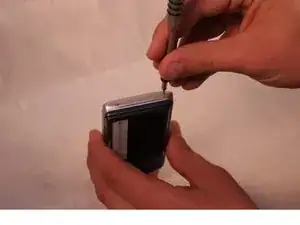

Now, take your PH000 screwdriver and remove the two 4 mm screws from the device.

Rotate the device 180 degrees so that the opposite side of the device is now facing upwards.

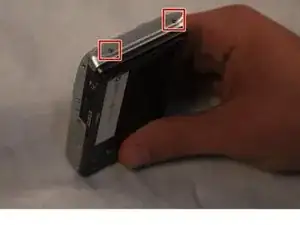

Now, take your PH000 screwdriver and remove the two 4 mm screws from the device.

After all of the screws are removed, rotate the device so that the bottom of the device is now facing upward.

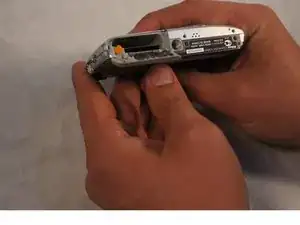

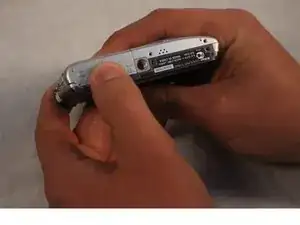

With your index finger, press down and slide open the memory card/battery door.

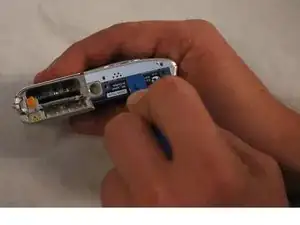

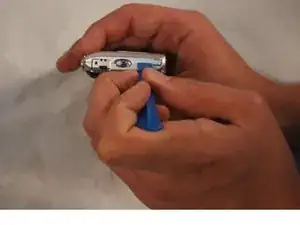

Now take the plastic opening tool, and place it in the seam of the device.

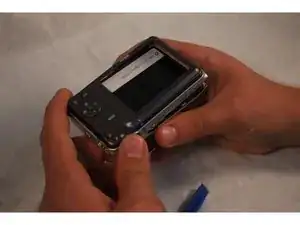

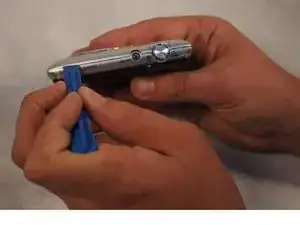

Now, work the tool around the seam of the device until you can safely pry open the device.

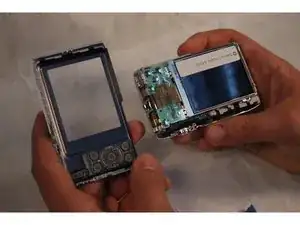

Using your free hand, finish prying off the back piece of the device.
