Back Panels

Geschrieben von: Nastassja Klipsch
  • Kommentare: 2
Back Panels

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide will show how to expose all of the inner parts of the Neato robot so that the user can continue with the replacement guides.

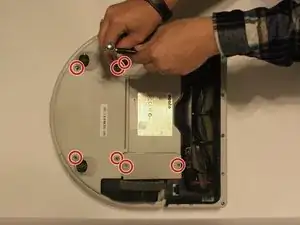

  1. aSwRi63dli2xxmO1

    • Flip the Neato on its back so the bottom is exposed

    • Unscrew the seven screws.

    This should be unnecessary. You should only need to remove the four screws from the battery doors. In this picture, the two lower-right screws are for one of the battery doors and the other is on the other side of the robot, under the demonstrator’s hands.

    John -

    It is EIGHT screws, not SEVEN.

    There are FOUR screws for the battery compartment panels (TWO for each).

    FOUR screws for the fan access panel.

    The panels are independent. There is no need to open the battery compartments to access the fan, nor vice versa.

    Fred -

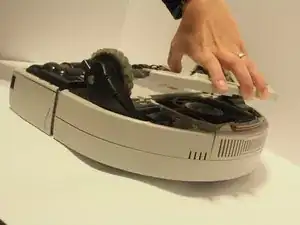

  2. rNWhmfUEGiL4XCiA

    • Lift the panels to reveal the batteries, brush and fan

    • There should be little to no resistance during this step, do not continue if the pieces do not separate easily

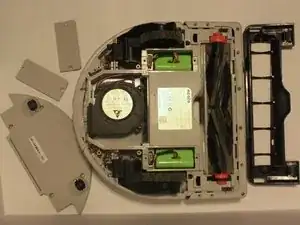

  3. vfEqiP2CSRvEjObU

    • The Neato's core components are now exposed and ready to be cleaned and/or replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
