A broken pawl, where unnatural grooves have been made, can cause the line to get caught and start spooling on the side. This is a guide on how to easily replace a baitcasting fishing reel's pawl so you can get right back to fishing.
Before starting, make sure you have a spare pawl for the reel's specific brand on hand to make the process smoother as most pawls are not interchangeable.
-
-

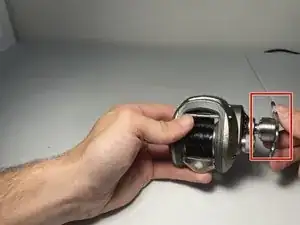

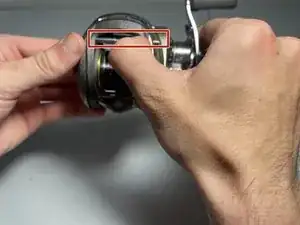

Grab the end of the rod connected to the line spool and pull it directly out of its frame.
-
-
-

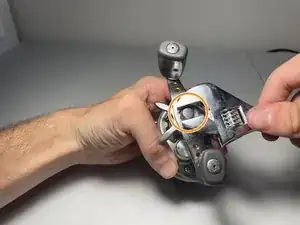

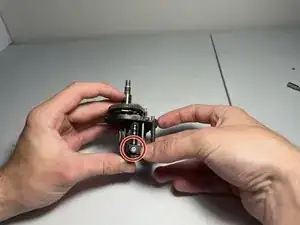

Loosen the single bolt with a 17 mm wrench.
-

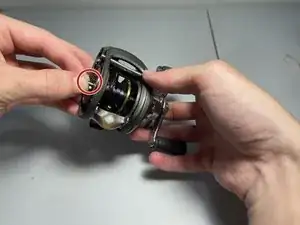

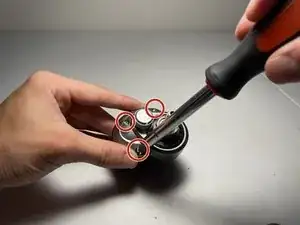

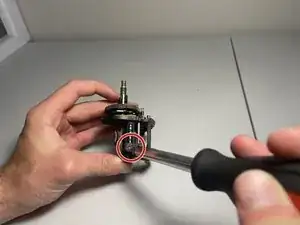

Use a Phillips #0 screwdriver to unscrew the single screw that attaches the reel to the reel side plate.
-

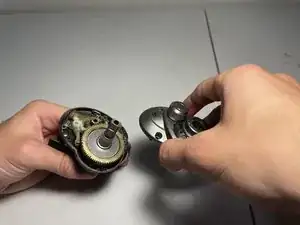

Lift off the reel.
-
-
-

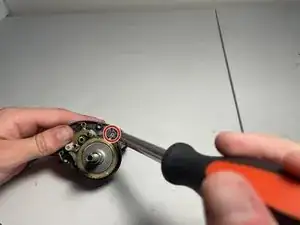

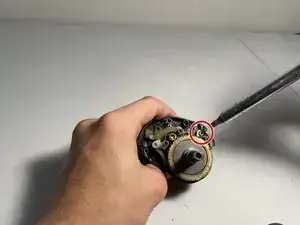

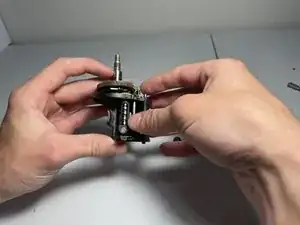

Use a Phillips #0 screwdriver to remove the single screw that attaches the grill to the body of the reel.
-
-
-

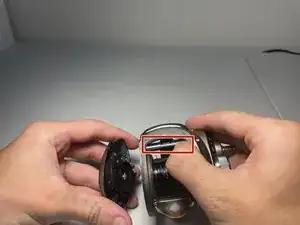

Insert the new pawl and previous washer back into the cap, and screw the cap back into place with a 2.5 mm flathead screwdriver.
-
-
-
Use a Phillips #0 screwdriver to reattach the grill.
-

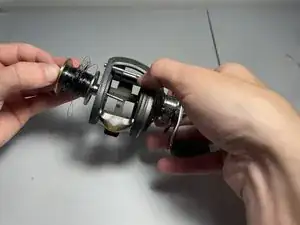

Place the spool back into the body of the reel.
-
-
-

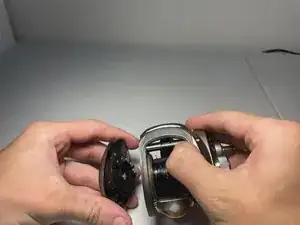

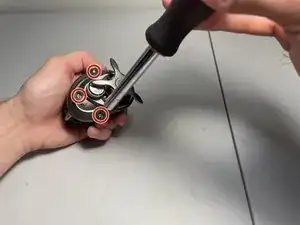

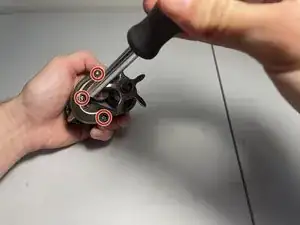

Use a Phillips #0 screwdriver to reinstall the three screws securing the reel side plate.
-
-
-

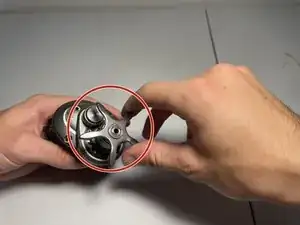

Screw the drag apparatus on with your hand until it clicks into position.
-

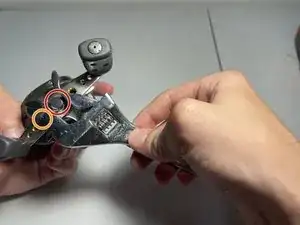

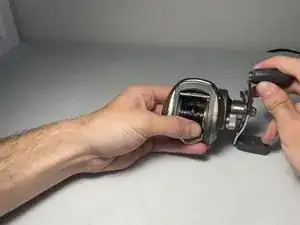

Reattach the reel by tightening the bolt with a 17 mm wrench, and replace the single screw on the side plate with a Phillips #0 screwdriver.
-
-
-

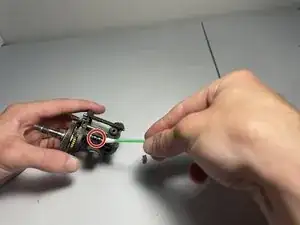

Crank the reel for one minute to make sure the line guide moves back and forth freely without getting stuck on one side.
-
Happy fishing!
