Barnes And Noble Nook Glowlight 3 Disassembly

This is the Nook Glowlight 3. It features an E-ink display with a resolution of 300 ppi. This device is touchscreen. It comes with 8GB of on device storage. It is wifi compatible

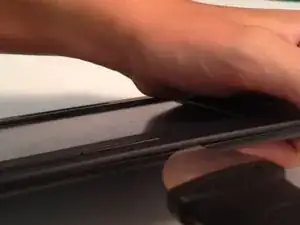

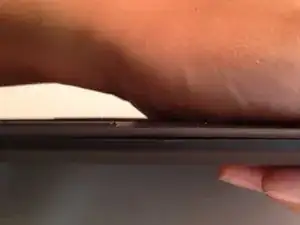

First, grab your Jimmy or any other thin tool and slide it along the edge of the device where the two halves meet, (shown in the picture).

Push firmly until the tool slides into the crack. Then rotate the tool as you slide it down to separate the clips securing the device.

Do this all around the device until the device splits into two halves.

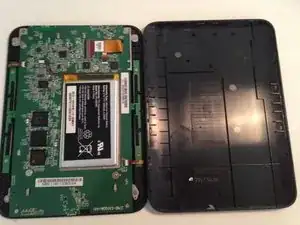

When both of the halves are able to be separated move the back cover aside.

To reassemble the device, push down on the back cover until it snaps into place.

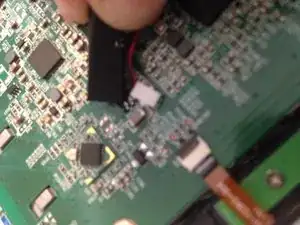

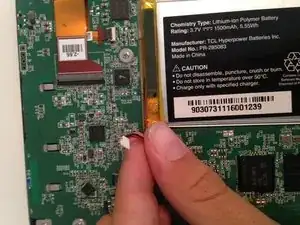

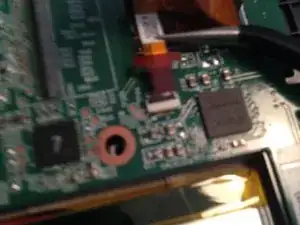

Disconnect the battery with a flick of the spudger.

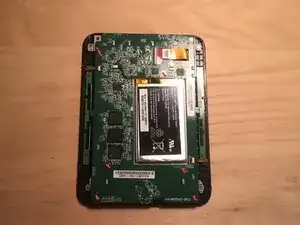

Remove the screws marked in red that secure the system board to the outer plastic.

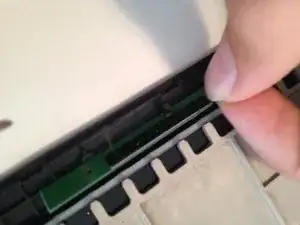

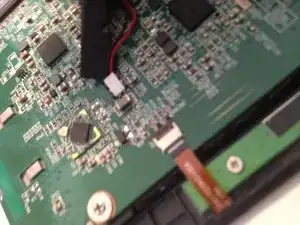

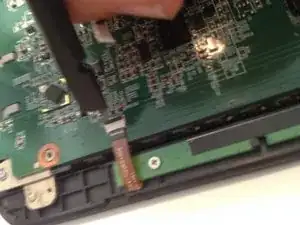

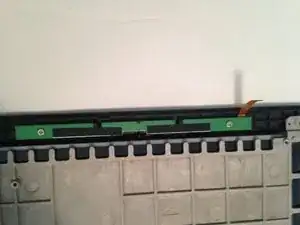

On both sides, there are two straight and skinny button panels. These control the side up/down buttons. Please disconnect both of these ribbon cables.

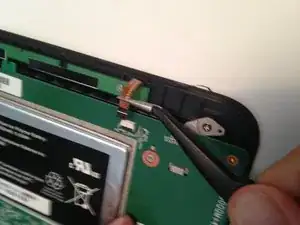

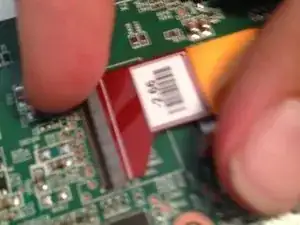

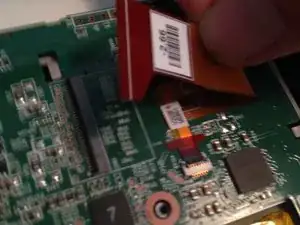

Now disconnect the display ribbon cables. ( one is hidden )

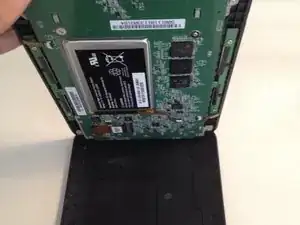

Now lift the logic board

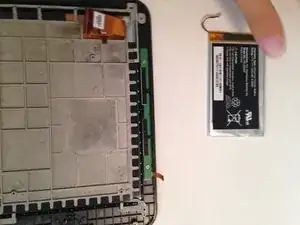

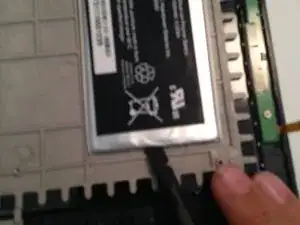

Now remove the battery by sliding a spudger underneath the battery and breaking the adhesive.

Now remove the screws on the button panels and remove them from the device.

Remove the rest of the screws connecting the display to the frame. Remember to take out both of the button boards.

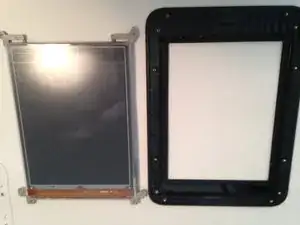

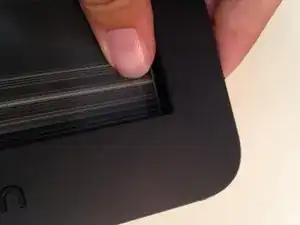

Push firmly on the display. Going all around the edges until the display becomes loose. (the screen was already cracked)
