This guide shows how to remove and replace the actuator valve on the Barreto Tiller E1320 2016.

  1. s2YGUE2hAZBeY2af
    s2YGUE2hAZBeY2af
    ZZcXNQfl6oHSSvcK

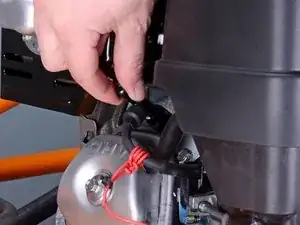

    • Before you begin, ensure that the engine is powered down and cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

  2. 5XNxZUOMumNRQnZi
    5XNxZUOMumNRQnZi
    PRbKxuQaVOccHEaH

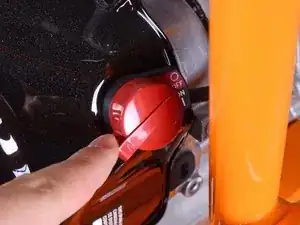

    • Flip the red engine ON/OFF switch to the OFF position.

  3. ELbXP1OZsK5dtsBV
    ELbXP1OZsK5dtsBV
    RrbPTfJWnGLicru3

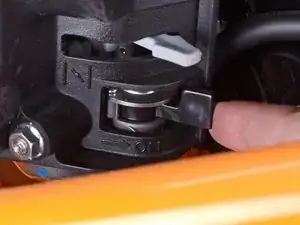

    • Flip the fuel valve lever to the OFF position.

  4. jOQUT6h4DWhEndhK
    jOQUT6h4DWhEndhK
    pwrPhQvk2RKy5MpD

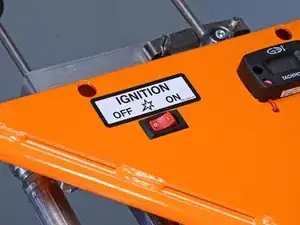

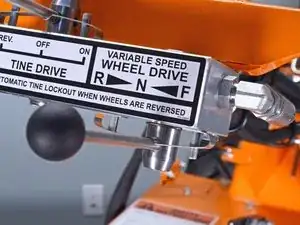

    • Flip the ignition switch to the OFF position.

    • Ensure the wheel drive control lever is set to the neutral position.

  5. BCLCetXmDSNeQdgl
    BCLCetXmDSNeQdgl
    UJvQ5wEOPFLWwH1F
    TU2RsedTJJWJDUBA

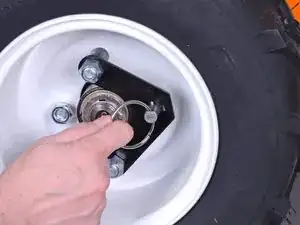

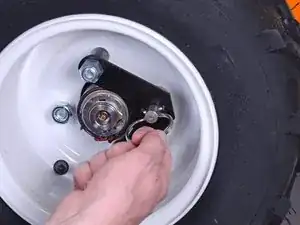

    • Pull the locking pin out and rotate it 90˚ to unlock the right wheel from the hub.

    • Repeat for the left wheel.

  6. iljfxDVpMMRf1PiE

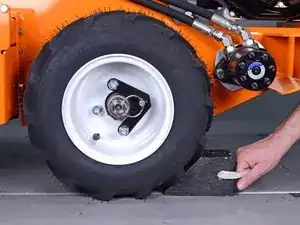

    • Insert wheel chocks underneath each wheel to keep the device stationary during disassembly.

  7. hJZAFeNEhXxG3uIA

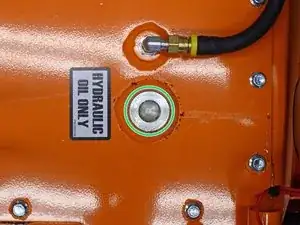

    • Use a 14 mm hex key to remove the tank fill plug.

  8. 1QcHCaYoK3rihouQ
    • Use a siphon to pump out as much fluid as you're able to, totaling about 14 gallons.

  9. OrpeHJEXjRjuyUSF
    OrpeHJEXjRjuyUSF
    LosrCGKwbagGXT2D
    ThuYylZXhqBuvyYr

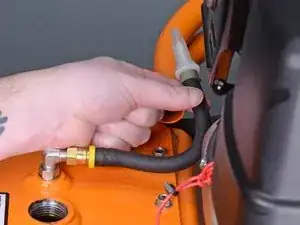

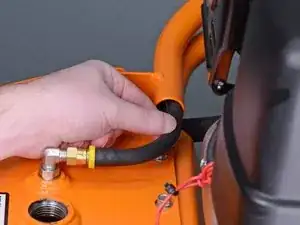

    • Remove the end of the tank breather tube from inside the engine guard structural pipe.

  10. XDhjXo3RaPtJHdaG

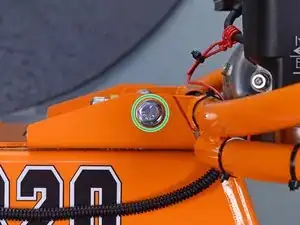

    • Use a 9/16 inch socket and wrench to remove the two bolts and accompanying nuts securing the engine guard to the tank lid, one on each side.

  11. Au5UOK6XXmFkiPVe
    Au5UOK6XXmFkiPVe
    oW2vbRLDD53Spb6Y

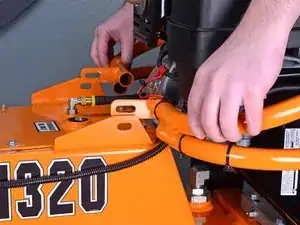

    • Lift the engine guard up above the tank lid flanges.

  12. OSClZ3ZKmPKkQPMw
    • Use a 3/8 inch socket to remove the ten bolts securing the tank lid.

  13. FtXAImxTBRacqP4C
    FtXAImxTBRacqP4C
    BRGbkEZMTskGGYaj

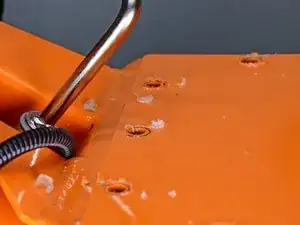

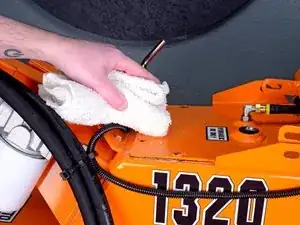

    • Use a shop towel to clean and remove any remnants of silicone gasket material from the top of the lid and surrounding areas.

    • Try to prevent any silicone remnants from falling into the hydraulic fluid tank.

  14. kPFYBR1KfMGmrjqH
    kPFYBR1KfMGmrjqH
    2Q4Yaw2vjOhVdeT5

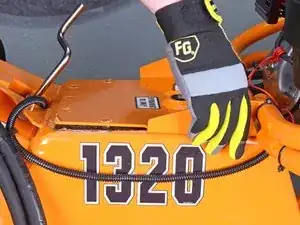

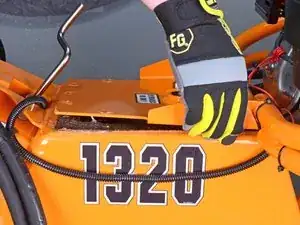

    • Lift up on the lid to break the seal around the perimeter of the gasket.

  15. cIR4gTtTU623aVPb
    cIR4gTtTU623aVPb
    WBm2oF3VD3VcKDWT
    TL26l3w1cYymKkN4

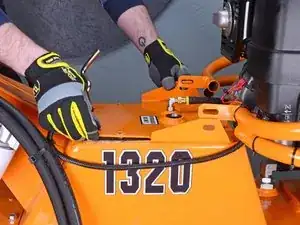

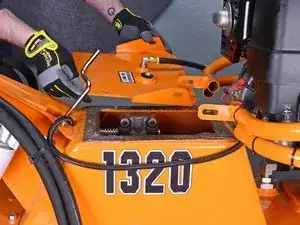

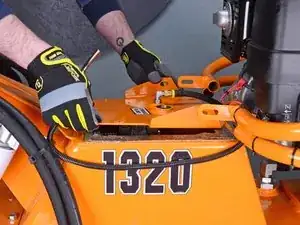

    • Lift the tank lid out and around the engine guard mounting tabs to remove it.

  16. 5N4wW3LHoTjxEgXX
    5N4wW3LHoTjxEgXX
    kAtOKbxAuGYsWhVn
    3a4YNJmqN2kZPcXD

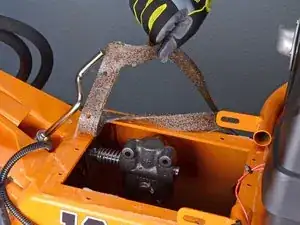

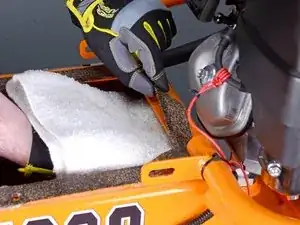

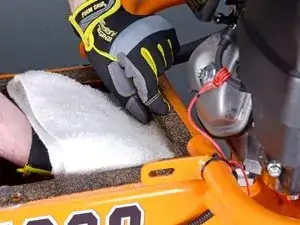

    • When peeling up the gasket, hold a shop towel underneath the lip of the tank to prevent any silicone remnants from falling in.

    • Peel the gasket up from around the perimeter of the tank.

    • Remove the gasket.

  17. ubKwMSddGmPmR2Uo
    ubKwMSddGmPmR2Uo
    2DH4FKDlCErNwjlH

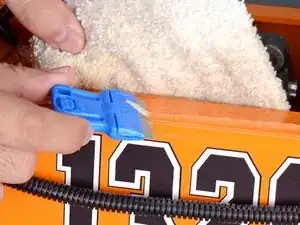

    • Before reinstallation, remove all remnants of old silicone gasket from both the rim of the fluid tank as well as the tank's lid.

  18. 5mEW1ObioIirr2t6
    5mEW1ObioIirr2t6
    QQNRHM1VLEPcXuJ1
    RoqL4p3HJW4MrCOM

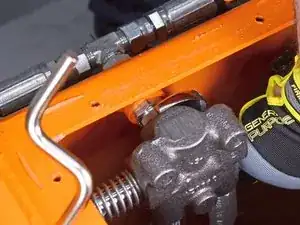

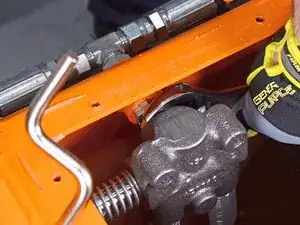

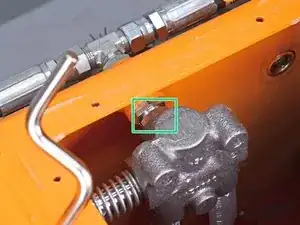

    • Use a 7/8 inch open-ended wrench or an adjustable wrench to loosen the lock nut closest to the valve on the actuator fitting.

  19. 6DLmqLj2LxyiHWrD
    6DLmqLj2LxyiHWrD
    DihNCQvCREepmTBM

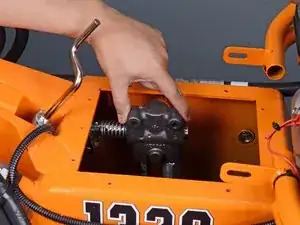

    • Rotate the actuator valve so the return tube and relief valve are horizontal and parallel to the tank opening, facing the engine.

  20. lHkTGRWhQaaCXZib
    lHkTGRWhQaaCXZib
    g4otNN6KQ44IdUQb
    ihkBijYkFnDoiYqC

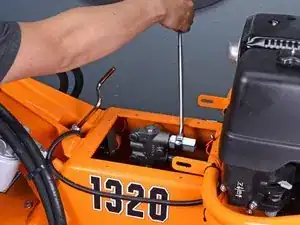

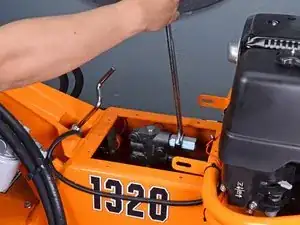

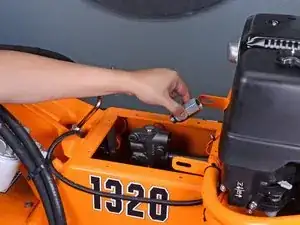

    • Use a 1-1/16 inch wrench to loosen and remove the relief valve.

    • This may require a bit of force. Use a breaker bar if necessary.

  21. S2WPWNN5MKH1Idq5
    S2WPWNN5MKH1Idq5
    R5RKVrZMspAMkbtY
    tWKIdpxg35Ucgn4b

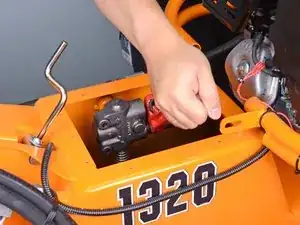

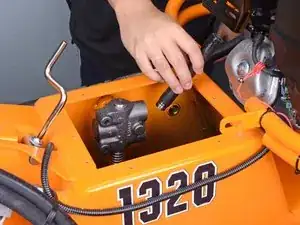

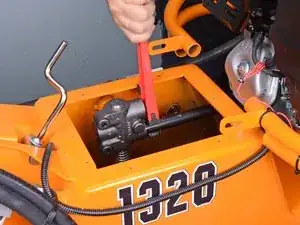

    • Use a pipe wrench to remove the return tube.

    • This may require a bit of force. Use a breaker bar if necessary.

  22. 3gtTBnD1yXaX3k1j
    3gtTBnD1yXaX3k1j
    ZaSptwmOTVVtArt2
    vSRXjfS4AGxd51uO

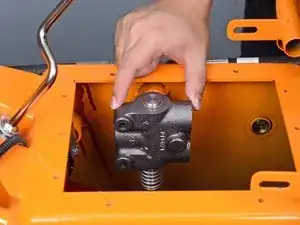

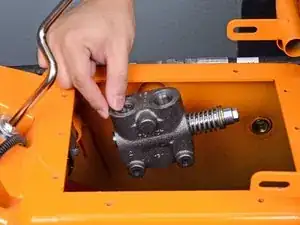

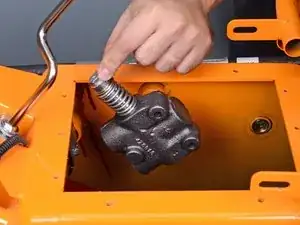

    • Rotate the actuator valve counterclockwise to loosen it from the tank fitting.

    • Rotate the valve until the plunger assembly becomes blocked by the lip of the tank edge.

  23. dV1CJXHaY4EoJtLR
    dV1CJXHaY4EoJtLR
    KsMnYBkhPq15du4R
    XFG4ylsvb3BLHIPy

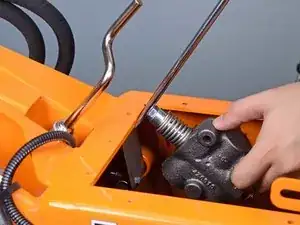

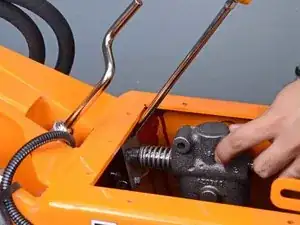

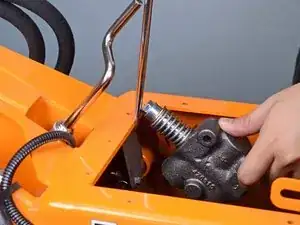

    • Using a long flathead screwdriver, pivot one end off of the edge of the tank, compressing the plunger assembly on the actuator valve.

    • While the plunger assembly is compressed, rotate the actuator valve down, past the edge of the tank, and onto the strike plate.

    • Repeat the last two steps to continue to loosen the actuator valve from the tank fitting.

  24. x5eRCYIEvGcUrr1t
    x5eRCYIEvGcUrr1t
    o2uiH4g4YsR4fSmU
    jgMNNsEXN3fMpFkG

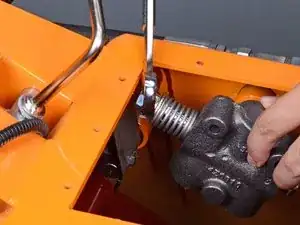

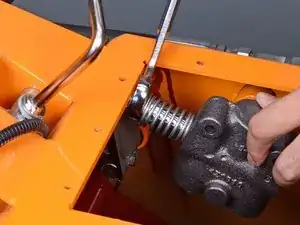

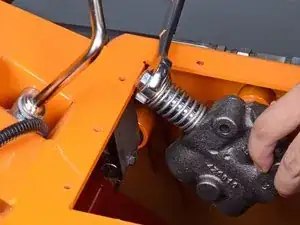

    • Reassembly tip: In order to bring the plunger assembly backwards, up and over the tank edge, use an open-ended wrench to compress the plunger assembly while rotating the actuator valve.

  25. Nqsq1sRsLMi6uMNQ
    Nqsq1sRsLMi6uMNQ
    RZ6PykOG3scLd6qp

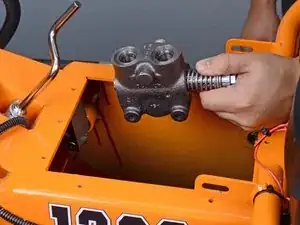

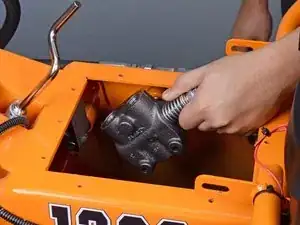

    • Remove the actuator valve.

  26. BEo6BFAdlEjpFlca

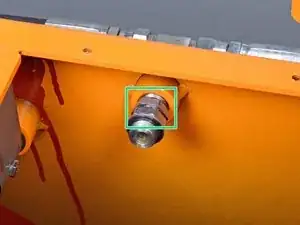

    • Use a 7/8 inch wrench to remove the tank fitting.

    • During reinstallation, install the fitting as shown, with the smaller, stationary nut facing the tank wall.

Abschluss

To reassemble your device, follow these instructions in reverse order.
