Barreto Tillers E1320HTRLR 2016 Outboard Internal Bearings Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Barreto Tillers E1320HTRLR 2016 Outboard Internal Bearings Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

1 - 2 Stunden

Einleitung

This guide shows how to remove and replace the two internal ball bearings housed inside the outboard bearing assembly on the Barreto Tiller E1320 2016.

If the entire outboard bearing assembly needs to be replaced, use this guide.

  1. s2YGUE2hAZBeY2af
    s2YGUE2hAZBeY2af
    ZZcXNQfl6oHSSvcK

    • Before you begin, ensure that the engine is powered down and cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

  2. 5XNxZUOMumNRQnZi
    5XNxZUOMumNRQnZi
    PRbKxuQaVOccHEaH

    • Flip the red engine ON/OFF switch to the OFF position.

  3. ELbXP1OZsK5dtsBV
    ELbXP1OZsK5dtsBV
    RrbPTfJWnGLicru3

    • Flip the fuel valve lever to the OFF position.

  4. jOQUT6h4DWhEndhK
    jOQUT6h4DWhEndhK
    pwrPhQvk2RKy5MpD

    • Flip the ignition switch to the OFF position.

    • Ensure the wheel drive control lever is set to the neutral position.

  5. BCLCetXmDSNeQdgl
    BCLCetXmDSNeQdgl
    UJvQ5wEOPFLWwH1F
    TU2RsedTJJWJDUBA

    • Pull the locking pin out and rotate it 90˚ to unlock the right wheel from the hub.

    • Repeat for the left wheel.

  6. iljfxDVpMMRf1PiE

    • Insert wheel chocks underneath each wheel to keep the device stationary during disassembly.

  7. RTvJmvS3ncm13cZO

    • Use an 8 mm socket to remove the outboard bearing grease fitting.

  8. rCkiyOtyZkpoYmwm
    rCkiyOtyZkpoYmwm
    1gRodQDmUeSq2aYm

    • Use a 9/16 inch socket to remove the four bolts securing the tine shaft to the side plate.

    • Use a 9/16 socket and wrench to remove the five bolts and accompanying nuts securing the side plate to the frame, three on the outside and two in the wheel well.

  9. dQCknBFLbFs4CqCx
    dQCknBFLbFs4CqCx
    Q3JUqWOic2YJinAC

    • Tilt the tiller up so the motor side is resting on the work surface with the tines raised.

  10. VPHeExOfHuETKJyg

    • Use a 1/2 inch socket and wrench to remove the four bolts and accompanying nuts securing the side plate to the tine cover.

  11. mZ5eJLSYZDJZTTtD
    mZ5eJLSYZDJZTTtD
    ZgFnTNZfNk1wMpcg
    MXDBGmtrXG6i6SDh

    • Slide the side plate down and away from the device to remove it.

  12. 2SZdshssBoGNDmCi
    2SZdshssBoGNDmCi
    iWffQko3cjqoMkcy

    • Use a clean paper towel or shop rag to remove the grease from the outboard bearing assembly.

  13. AJU61m6Z34RD3BNC

    • Use a 9/16 inch socket to remove the bolt securing the outboard bearing assembly to the tine shaft.

  14. FRXNlGbOjdNWt3qP

    • Remove the three washers, held in place by the bolt, from the outboard bearing assembly.

  15. UjwD3bhDrlhEEECc
    UjwD3bhDrlhEEECc
    26xJQmjmxmwVwqXk
    MIgmlFC5VIfEr1Xi

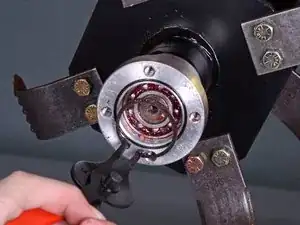

    • Use a pair of snap ring pliers to remove the snap ring from the outboard bearing assembly.

  16. vRPRHpEZsKkt1hgo
    vRPRHpEZsKkt1hgo
    nlmmC1ovRLOWVBnq
    4gWwjnEDlqqtKAGk

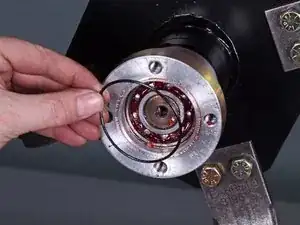

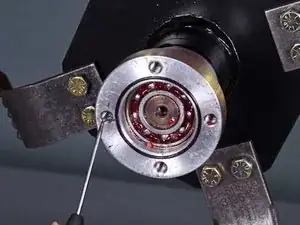

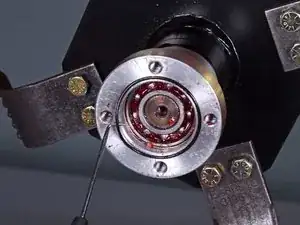

    • Use a pick tool to remove the O-ring from its recess on the outer edge of the assembly.

    • During reassembly, install a new O-ring.

  17. WprxNH5MimytBQFT

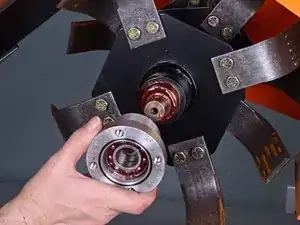

    • Pull the assembly off of the tine shaft to remove it.

  18. QkIa6vxAJb6vxqKY
    QkIa6vxAJb6vxqKY
    UFDXCbkZAjBdatEG
    sKJUtZ4cn3Igk3JN

    • Set the assembly flange-down onto the work surface.

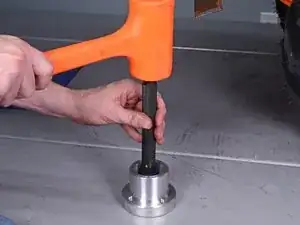

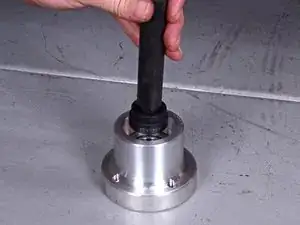

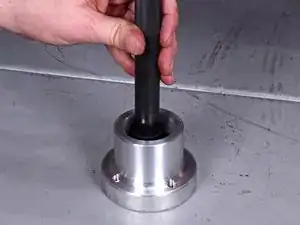

    • Use a bearing removal tool or bearing press to remove the ball bearings from the housing.

    • Grease the internal walls of the outboard bearing housing before installing new bearings.

    • During reassembly, ensure the new bearings sit flush along the inner lip of the housing.

  19. Q3w23HXMkqJEVIED

    • With the bearings removed from the housing, remove the dust shield.

    • During reassembly, install the dust shield after both bearings are pressed into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
