Einleitung
This guide shows how to remove and replace the reversible tines on the Barreto Tiller E1320 2016.
Tines should be changed as often as needed. Use Loctite 271 on tine bolt threads to prevent them from loosening.
-
-
Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.
-
-
-
Flip the ignition switch to the OFF position.
-
Ensure the wheel drive control lever is set to the neutral position.
-
-
-
Pull the locking pin out and rotate it 90˚ to unlock the right wheel from the hub.
-
Repeat for the left wheel.
-
-
-
Insert wheel chocks underneath each wheel to keep the device stationary during disassembly.
-
-
-

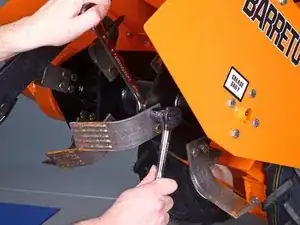

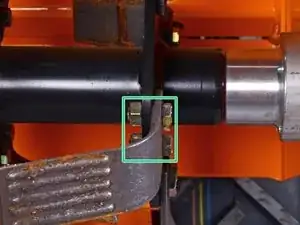

Use a 5/8 inch socket with an 11/16 inch wrench to loosen the two 5/8 inch bolts and two 11/16 inch nuts securing the tine to the tine shaft.
-

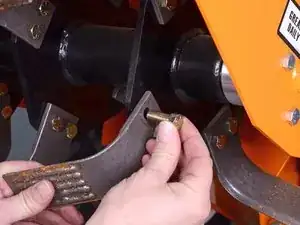

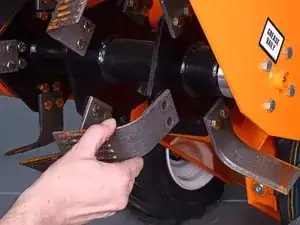

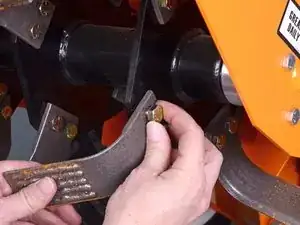

Remove the two tine nuts.
-
To reassemble your device, follow these instructions in reverse order.
