Bath Tub Cartridge Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

This repair is needed to fix any water leakage in your bathtub or shower. The water is controlled by a device call a cartridge. When the cartridge is damaged, it becomes loose and begins to crack. Over time, these cracks let out even more water.

This guide will help you fix a leaky faucet, or any leakage of water that is occurring in the tub. This procedure is very safe, and the only hazard is slipping in the tub. The process is straightforward and can be achieved at home with the right tools. There are no special requirements for this guide.

However, you will need to be patient, as parts of this guide will be frustrating due to the size of the tools being used. Replacing a tub cartridge will seem intimidating at first, but it is a lot easier than most would think. This guide will show you how to open up your faucet, find the cartridge, and replace it with a brand new one; doing so will fix the leaking water problem as well.

  1. CvpLGoc5lpmOCleN

    • Turn off the water supply for the home. This is usually found in the basement next to the ventilation system.

    • If this is not done, the bathroom will overflow with water.

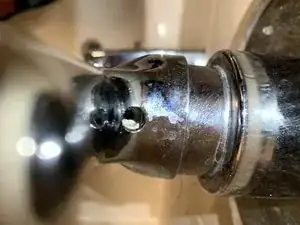

  2. E2DGZHYQikL2JHFm
    E2DGZHYQikL2JHFm
    1IDgfujlWDJ5vAib

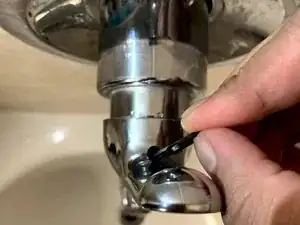

    • Loosen the faucet screw using an Allen key.

    • Every tub faucet is different, so yours may require a different size Allen key or screwdriver.

  3. OAkk1xCy1jMOTVw3

    • When the screw is loosened, slide the handle off.

    • To keep screws from falling down the drain, place a towel over the drain to catch the screws.

  4. EqVwO2bnUIuZtAWC
    EqVwO2bnUIuZtAWC
    rakjHGF2RRhdJIYU
    TIvAEMkVQrXEJJgC

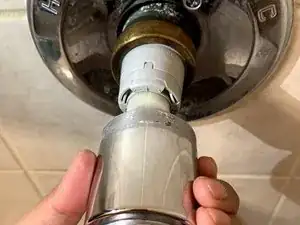

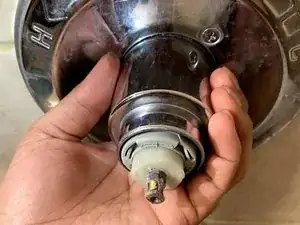

    • Remove the metal cap by sliding it off.

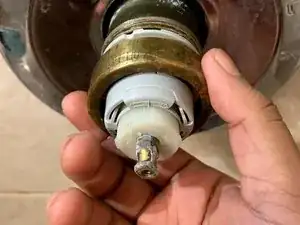

  5. HcJx4dWuad1aXyk5
    HcJx4dWuad1aXyk5
    A45LLabQ6ZnsV6Lb
    eDwL33iW2Tkhcb5B

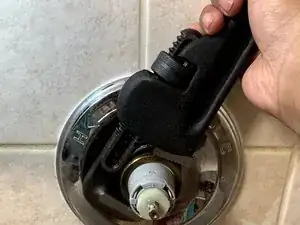

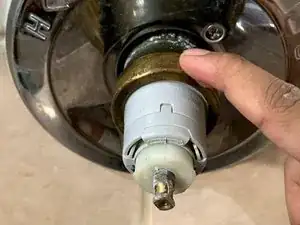

    • Use your hands to turn the ring to the left to loosen it. If the ring is not turning then use a wrench.

    • Do not use force when using the wrench as this will damage the pile.

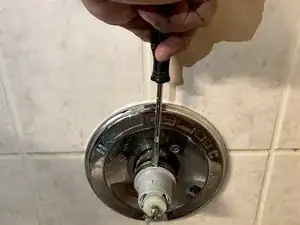

  6. pGnPGcBrJ1TqQSSI
    pGnPGcBrJ1TqQSSI
    eDLKoxHhfJWgM1H3
    Ilwf3kgQyKjyKyCy

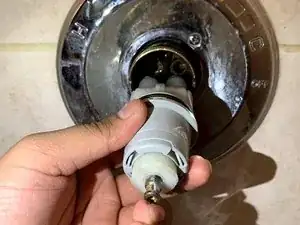

    • Use your hand to slide the cartridge out.

    • If the cartridge is stuck, you can use a spudger to remove it. There is a slight nook in between the pile and cartridge which can be used for leverage.

    • Not much force is needed to remove the cartridge.

    • Once the cartridge is removed, water remaining in the pile will flow out.

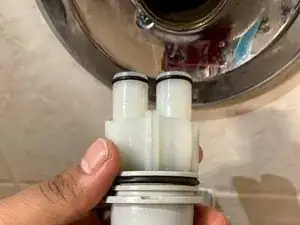

  7. FHKrFRuNaTVjvVW2
    FHKrFRuNaTVjvVW2
    lMnftIlYEcjLQIXt
    AISw5EcUUgIelHDS

    • Line up the side of the new cartridge with the pile.

  8. GjTTuZ4BxcAEvYin
    GjTTuZ4BxcAEvYin
    IdiwoZ1bTZNBgxRw

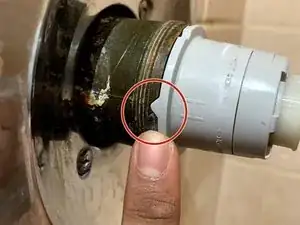

    • If the cartridge is successfully installed, it will be flush with the pile. For an extra measure you can push the cartridge inward, but do not use a lot of force.

    • The front end of the cartridge will be able to determine the temperature of your water. Pull the plastic toward yourself, and turn it to the right for cold water, and to the left for hot water. You can also keep the plastic in the middle, but the temperature of the water will be less accurate. This means it will either be too cold or too hot.

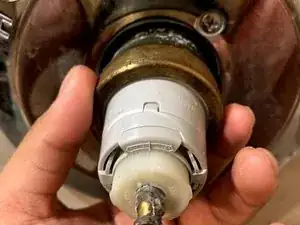

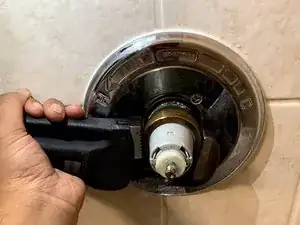

  9. QWOq2UQitDLjSafw
    QWOq2UQitDLjSafw
    UPwYlM2YUjwAECua
    HctYBExfnKOUpDMe

    • Place the ring back on and turn it to the right to tighten it. Use your hands before using the wrench to tighten.

    • Slide the metal cap back on.

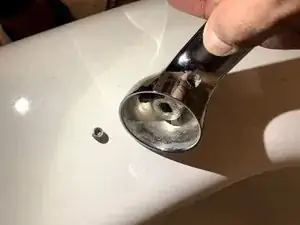

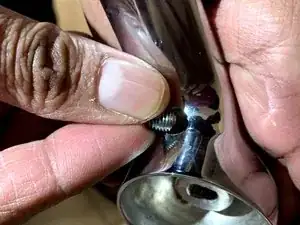

  10. 3ZZclZReL1H5LlGn
    3ZZclZReL1H5LlGn
    2iRKHFBwOiisTAko
    ncmyou1HWHonAiLk

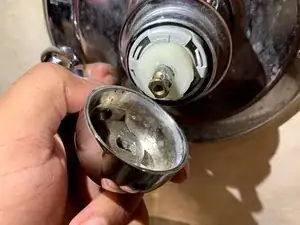

    • Place the screw back into the handle before placing it back onto the cartridge.

    • Make sure the tip of the cartridge is lined up with the inner part of the handle; if they are lined up, the handle will be able to slide on without any difficulty.

  11. L1XpbPgfoSV3YJtJ
    L1XpbPgfoSV3YJtJ
    hWQxsrpLBHXFLGgn
    U3TFnxRslSpE6F3a

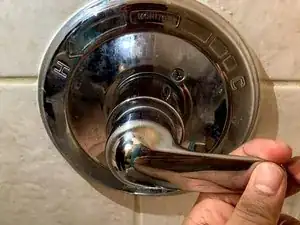

    • Use the Allen key to screw the handle back onto the cartridge.

    • Do not screw on the handle too tightly because if a problem occurs, you will have to unscrew it again.

    • Once the handle is on, you will be able to move it to the right and left.

  12. eXN1JaM1dDDOXoAH

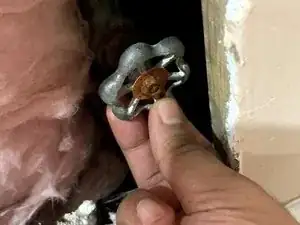

    • Turn the water supply back on.

    • One person should be in the bathroom to check if the shower and faucet are working properly. Once the water supply is turned on, the faucet will make a noise—this is perfectly normal and will go away after one to two minutes.

Abschluss

To reassemble your device, follow these instructions in reverse order.
