Battery Replacement

Geschrieben von: Dalton Johnson
  • Kommentare: 1
Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

If you are having battery problems and need to replace yours, this is the guide that will show you the simple steps to access and replace your Black and Decker drill battery.

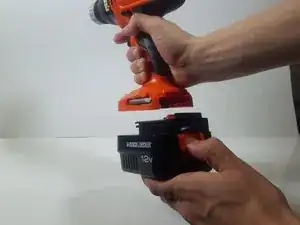

  1. RTYUwFHEK54DnGYJ
    RTYUwFHEK54DnGYJ
    kCkngwg1QuRWbeuq
    Iqg3SHqE16HGXZJe

    • Detach the battery unit from the drill by pressing down on the battery release button and pulling the battery towards you.

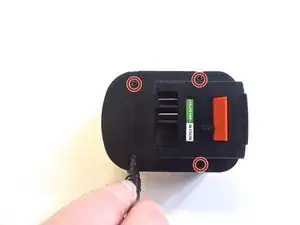

  2. AkLjkPba5ZEQ3UoC

    • Now that the battery component is detached, remove the 4 screws indicated [16mm].

    • Remove each screw with the T10 Torx Security Bit Screwdriver by turning counterclockwise.

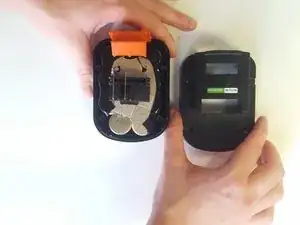

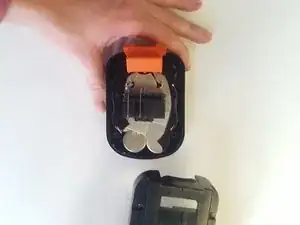

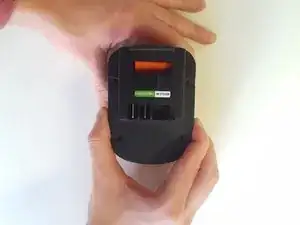

  3. ppDHeEraYrKH3KtY
    ppDHeEraYrKH3KtY
    OlyDVb1wiqrnyG5L
    qKbfidX4Vc3qkT5F

    • Now that the screws are detached, separate the two sides of the battery.

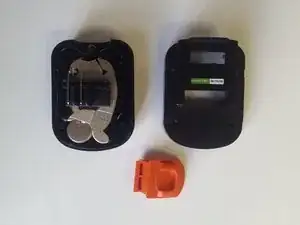

  4. 62A3vLEmpUD4THqK
    62A3vLEmpUD4THqK
    YSFdbqRuX1NjBQbm

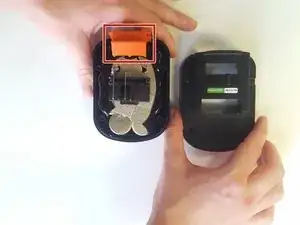

    • Remove the highlighted, orange component and set aside.

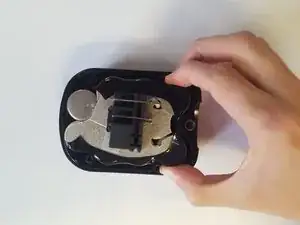

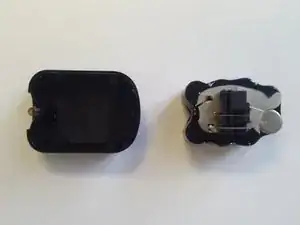

  5. TpV6IHtBX4vdyZx5
    TpV6IHtBX4vdyZx5
    Q14Rms4FNFW41kaW
    HuZ3jWZtemtt3rJK

    • Grip the battery pack and detach it from the casing by pulling it upward.

    • Spring may fall out during the process.

Abschluss

To reassemble your device, follow these instructions in reverse order.
