Beats Solo 3 Motherboard Replacement

Geschrieben von: Jakub Karl
  • Kommentare: 0
Beats Solo 3 Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This is a motherboard replacement guide for the Beats Solo3 Headphones. The model number is A1796. This guide will show you how to safely and accurately remove and replace the motherboard from your headphones. The motherboard allows audio to be played wirelessly through any device such as a mobile phone. Symptoms that can result in a motherboard replacement can be found on our troubleshooting page.

  1. pKWKGLaOvgyBGlro

    • Use an opening tool to open the headband at the color seam.

    • The audio board is located inside the "Left" ear cup.

  2. 2tXBYkCSiXujoUZT
    2tXBYkCSiXujoUZT
    WZTDYyNqNRlIsEpB

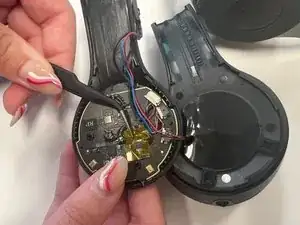

    • Use a pair of tweezers to carefully remove the yellow polyimide tape that is attached to the morherboard.

  3. CZnZHkdMJjb1JgLx

    • There will be three bundled cables attached to the motherboard. Carefully pull them out of each prong.

    • Make sure to take note of which one belongs where for reassembly later.

  4. VUsGhYLDJyAjZSuC

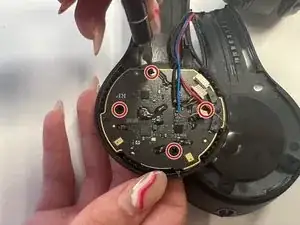

    • Use a Phillips #00 screwdriver to remove the four screws that hold the motherboard in place.

    • The cap on the outside of the headphones will fall off once the final screw is removed. Do not fear that something broke. Simply reattach during reassembly phase

  5. GagiVg2xHPHRDwBL

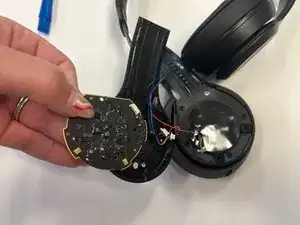

    • Finally, remove and replace the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
