Beats Solo HD Right Hinge Pin Repair

Geschrieben von: oldturkey03
  • Kommentare: 0
Beats Solo HD Right Hinge Pin Repair

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 - 30 Minuten

Einleitung

Here is a pair of Beats On-Ear headphones that mysteriously came loose on the right hinge. Repair is straight forward and only required some basic tools.

  1. kdYbiS5QYATD4XIl
    kdYbiS5QYATD4XIl
    CLyweyOVbgYcGXMM
    OqmLL6FfegKEFqlE

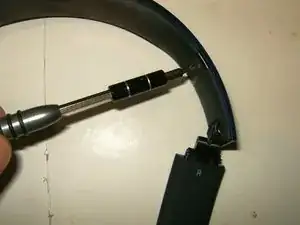

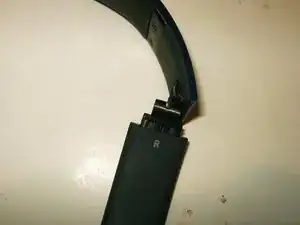

    • Remove the T4 Torx screws located above the right speaker.

  2. aFRZaVvYU2EjaQWM
    aFRZaVvYU2EjaQWM
    JtM3fCWuFM1pmOHN
    2pPXUnDhrWQs5RVM

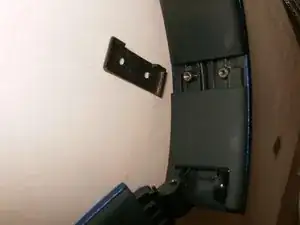

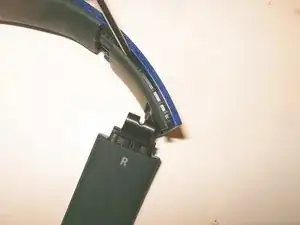

    • Lift away the shield covering the screw holes.

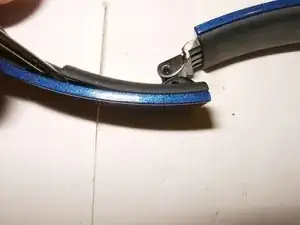

    • Pry off the shield directly below it.

  3. x3nLRyQIPejHYQ6X
    x3nLRyQIPejHYQ6X
    4fgs6MhJDUw2T6Ia
    ucJyKsMPSXEUcCEk

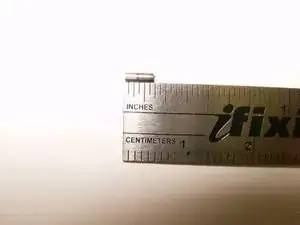

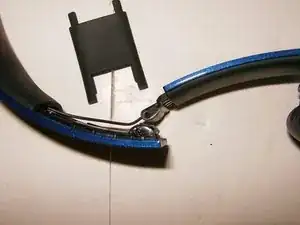

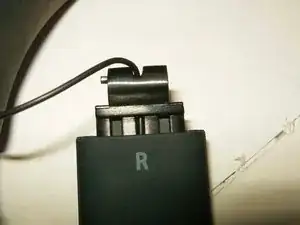

    • Lift away the plastic shield and remove the pin.

Abschluss

To reassemble your device, follow these instructions in reverse order.
