Einleitung
Use this guide to access the headphone jack and check soldered connections. I you are planning to follow this replacement guide, you should have identified the headphone jack as a source of a problem (or maybe you just want to see the guts of your Beats Studios).
-
-
Using the T5 Torx screwdriver, remove the black screws on both sides of the outside of the headband.
-
4 (2 per side) Torx type T5, 3.5mm long screws.
-
-
-
Use the plastic opening tool to gently pry the black plastic hinge piece directly away from the headband as shown.
-
-
-
Remove the small metal hinges from their housings. There are a total of 4 hinges, two per side of the headphones.
-
-
-
Using a T5 Torx screwdriver, remove the silver screws from the silver segment of the headband.
-
4 (2 per side) Torx type T5, 4.0mm long screws.
-
-
-
Using the plastic opening tool, gently pry the headband cushion directly away from the plastic portion of the headband as shown. Pry the plastic portion a small amount and then move the opening tool sideways along on the headband. Repeat on both sides until the cushion separates from the top plastic part of the headband.
-
-
-
Carefully remove the metal band from each of the hinge housings on each side. These should come off quite easily, provided that you have removed the hinges as instructed in step 3.
-
Congratulations, you have completely removed the headband! This will allow for ease of accessibility to the speakers should you choose to delve further into the depths of your headphones.
-
-
-
Pinch the ear cushion between your thumb and forefinger.
-
Carefully pull the cushion directly away from the earpiece.
-
Repeat for the other ear cushion.
-
-
-
Use the plastic opening tool to remove the black ring from the speaker. This will allow you to access the screws on the metal ring.
-
Congratulations, you now have access to the rest of the speaker!
-
The black lip is located on the back side of the ear cushion.
-
-
-

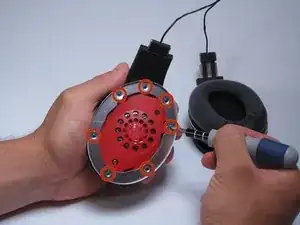

Use a 00 Phillips head scewdriver to remove the screws holding down the metal ring.
-
Set aside the metal ring.
-
7 Phillips type 00, 3.9mm long screws.
-
-
-

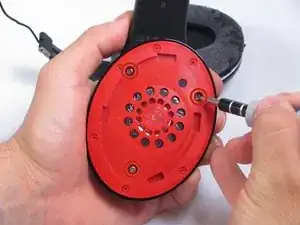

Using the 0 Phillips head screwdriver, remove the 3 screws holding down the red speaker assembly.
-
3 Phillips type 0, 8.0mm long screws.
-
-
-

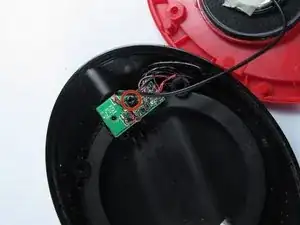

Use the 00 screwdriver to remove the screw holding down the headphone jack PCB board.
-
1 Phillips type 00, 5.0mm long screw.
-
-
-

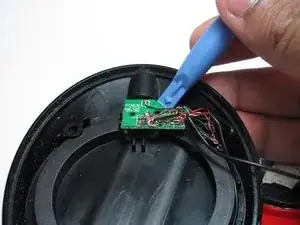

Use a plastic opening tool to gently pry the headphone jack and board up and out as shown.
-

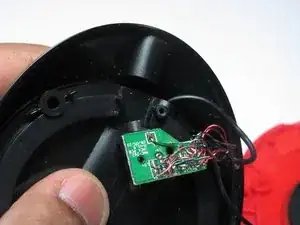

Inspect the wires and ensure that they are all appropriately attached and not shorted or frayed.
-
If necessary, the board can be de-soldered and replaced with a new jack and board assembly.
-
To reassemble your device, follow these instructions in reverse order.
