Einleitung

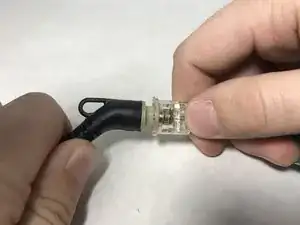

Use this guide to remove and replace the power cord from the power lead connector. It will show you how to split the lower handle housing to gain access to the power lead connector and other internal components. The lower handle housing must be split in order to replace the power cord without damaging it.
Werkzeuge
Ersatzteile
-
-
Unlock the handle of your Deep Waver to gain access to the screws you need to remove.
-
Remove two 10 mm Phillips #01 screws from the lower handle housing.
-
Remove one 10 mm Phillips #02 screw from the lower handle housing.
-
-
-
Pry the black screw cover off the side of the lower handle housing using a fine-point spudger or pick. This side will have the model number and other product information embossed on it.
-
-
-
Pry the black screw cover off the other side of the lower handle housing. This side will have the power switch located on it.
-
-
-
Cut along the length of the black housing retainer with a rotary tool to split and remove the retainer.
-
-
-

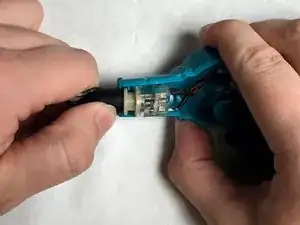

Split the lower handle housing apart using a plastic opening tool.
-
Begin splitting the housing at one end rather than the center to avoid cracking the casing.
-
To reassemble your device, follow these instructions in reverse order. Once each half of the housing have been put back together, install a new Housing Retainer to replace the one you cut off.
