Behringer BCD3000 Disassembly

Unplug from all cables

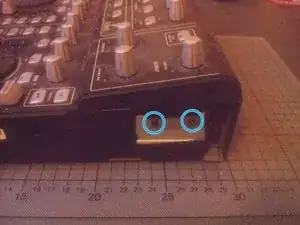

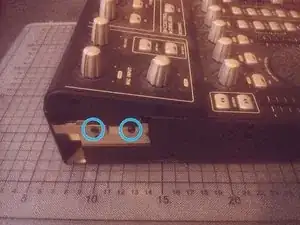

unscrew two Phillips screws on each side of the BCD3000

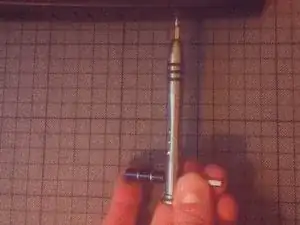

If the screws sit too tight, you can use the extension for better torque

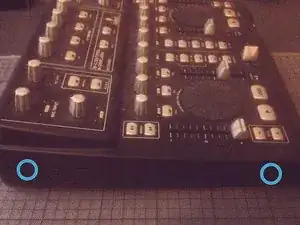

unscrew another two Phillips screws on each side

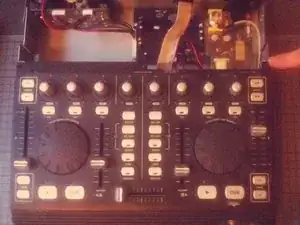

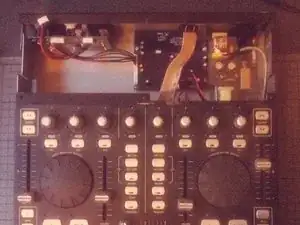

Lift the upper control part.

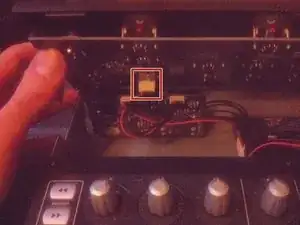

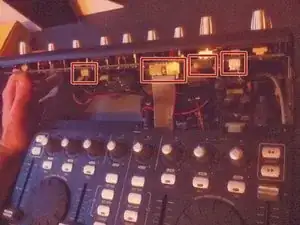

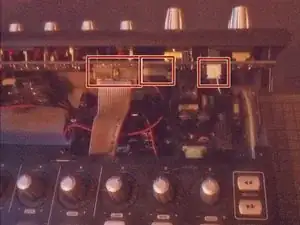

Disconnect the cables by walking them out of their sockets.

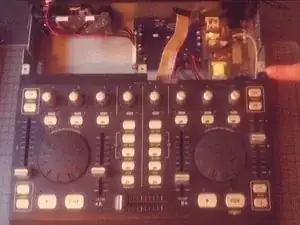

Remove the upper part completely.

Disconnect the two cables from the lower section to the connector board.

Slide the lower section to the front.

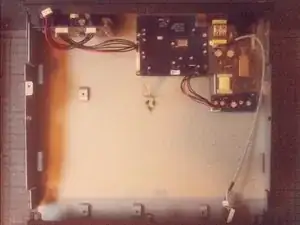

Now you can lift it and take it aside.

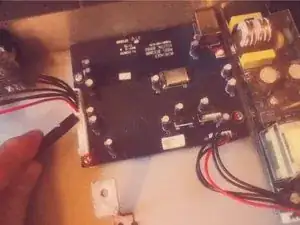

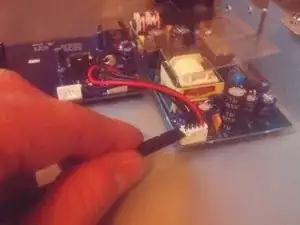

Disconnect the separate boards.

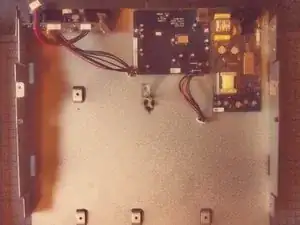

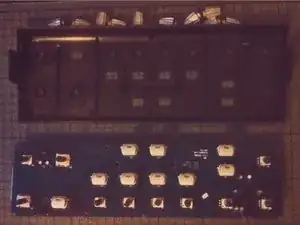

Now you can take the modules out by unscrewing them from the case.

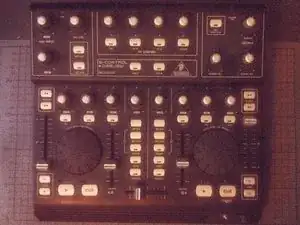

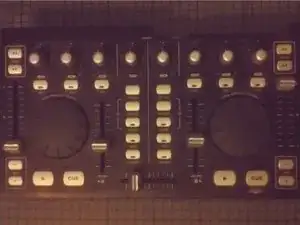

The jog wheels on the front panel can be taken off by using a spudger and levering them out.

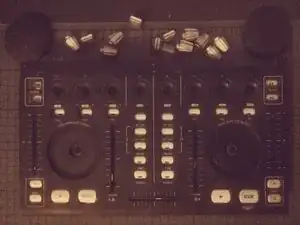

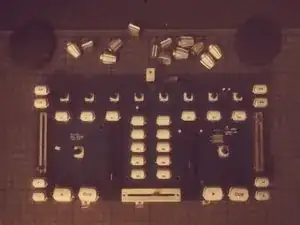

The knobs can easy be removed just by pulling.

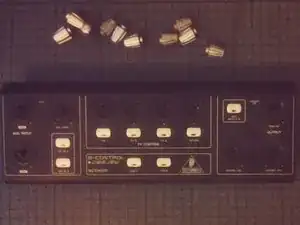

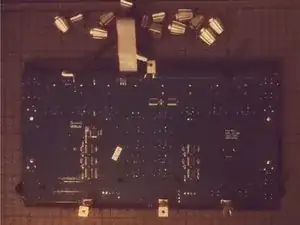

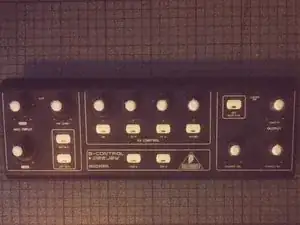

Same goes for the knobs on the top section of the front panel.
