Belkin NetCam HD Speaker Replacement

Geschrieben von: Destinie DiazVerdejo
  • Kommentare: 0
Belkin NetCam HD Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

When you know your phone connection with the camera is good, but no sound is going through. The speaker could have gone out and needs to be replaced.

  1. dINkYTvgMHGxInCZ

    • Use a wrench to loosen up the stand from the back in order to hold the NetCam more comfortably.

  2. plCkaNnbG3sgVpIY

    • Work a plastic opening tool into the seam and pry the face plate away from the back panel.

  3. 4tDMKHJx2HUaEU6t
    4tDMKHJx2HUaEU6t
    uppIOY2OIEI4SKKV

    • Use pressure to separate the covers.

    • When pulling the device apart, separate from the bottom up in order to avoid pulling the wiring at the top apart.

  4. xO52Mpaoei6XZNBQ

    • Carefully use your fingers to gently pull out the white attachment from the tan colored part.

  5. AlM6MljPWxDnQijd
    AlM6MljPWxDnQijd
    fTZeJBHUDcspiJLC

    • Use a Phillips #0 screwdriver to take out the two 1.2 mm screws on the board.

  6. dmoNfZW4ZWNWYSbv
    dmoNfZW4ZWNWYSbv
    YSNMuyTiXw5OuXgA
    MI2VcIbGbbQZlQLE

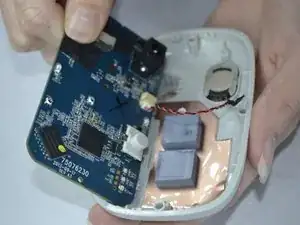

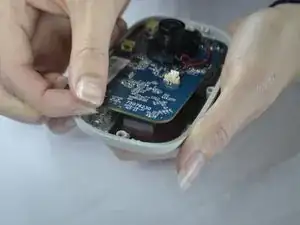

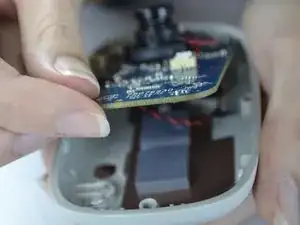

    • With your fingers, pull the circuit board out of the back casing.

    • When pulling the board up be sure to do so carefully so you do not break the cord which is attached on the back side.

  7. geKTrOQTD1V6vEkL
    geKTrOQTD1V6vEkL
    HS5cQKR2mkfSLXKU

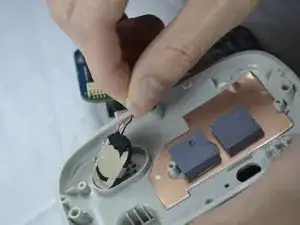

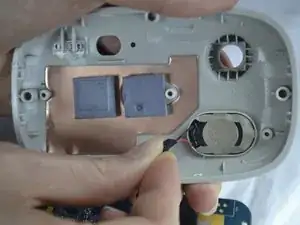

    • Gently pull the speaker out of the holder from the back of the cover.

  8. RqpoOWdZLqNoSDmi

    • The speaker wires are attached with the board. It can be unattached gently by pulling out the white attachment from the port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
