Bella 4-Slice Toaster Oven Glass Door Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

If the glass door breaks, becomes damaged, or is too dirty for your liking, this easy and effective guide will walk you through the steps required to replace it.

  1. KJtGtOtYL6AFdlUi

    • Remove five 11.6 mm Phillips #2 screws from the rear of the device.

  2. W6oXcKobDwUGKI5O

    • Open the front glass door of the toaster oven.

  3. mUiqsQQwCwXxYRm4

    • Locate retaining screw on the upper-middle portion of the door frame.

  4. ioDmBNOye2hvPuJc

    • Remove one 21.9 mm Phillips #2 retaining screw from upper-middle portion of door frame.

  5. yv4KZHNmRTPjrSvy

    • Flip toaster onto back panel with feet facing forward.

  6. QcKkIPE1JFlT2ixb

    • Use spudger to pry the grey rubber inserts from the black plastic feet.

  7. G4DAlrbA5Ja6Bq25

    • Remove four 13.7mm Phillips #2 screws from black plastic feet to separate the cover from the device.

  8. xVKIDitmcZaaxq63

    • Lift the black outer cover off of the toaster

  9. Gh3BEpPMMLxOCZ3F
    Gh3BEpPMMLxOCZ3F
    hJJVLGZfM1Nt1WmW

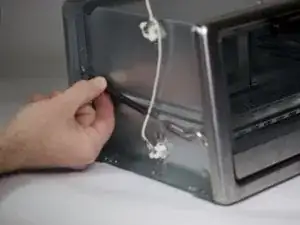

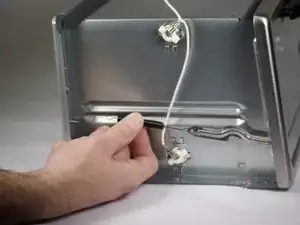

    • Unhook the black coil springs from back of the toaster on both sides of the device.

  10. 32GtbHIqGWMCDmsb

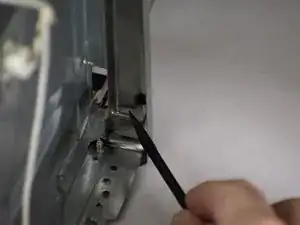

    • Use the black spudger to gently depress the hinge prongs on the bottom of the door.

  11. ZVKlUFTXiARExwPl
    ZVKlUFTXiARExwPl
    XHHj52uEUb1Xkh6C

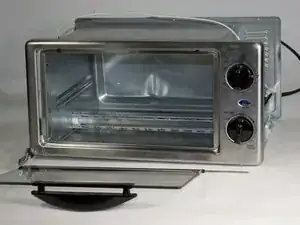

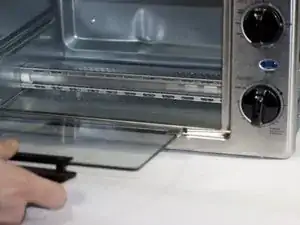

    • Gently slide door away from the device, removing it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
