Bella 4-Slice Toaster Oven Heating Element Replacement

Geschrieben von: Pierce Hampton
  • Kommentare: 0
Bella 4-Slice Toaster Oven Heating Element Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

5 Minuten

Einleitung

If the heating element fails for any reason, and needs to be replaced, this guide will walk you through the simple steps required to replace the component.

  1. KJtGtOtYL6AFdlUi

    • Remove five 11.6 mm Phillips #2 screws from the rear of the device.

  2. W6oXcKobDwUGKI5O

    • Open the front glass door of the toaster oven.

  3. mUiqsQQwCwXxYRm4

    • Locate retaining screw on the upper-middle portion of the door frame.

  4. ioDmBNOye2hvPuJc

    • Remove one 21.9 mm Phillips #2 retaining screw from upper-middle portion of door frame.

  5. yv4KZHNmRTPjrSvy

    • Flip toaster onto back panel with feet facing forward.

  6. QcKkIPE1JFlT2ixb

    • Use spudger to pry the grey rubber inserts from the black plastic feet.

  7. G4DAlrbA5Ja6Bq25

    • Remove four 13.7mm Phillips #2 screws from black plastic feet to separate the cover from the device.

  8. xVKIDitmcZaaxq63

    • Lift the black outer cover off of the toaster

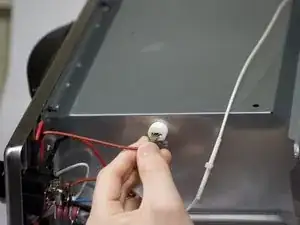

  9. Jmktu4jAM3pGQiPF

    • Remove the red wire from the heating element.

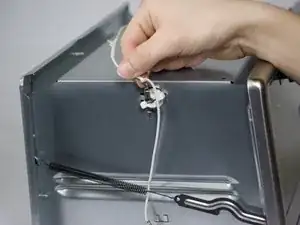

  10. jmOSrJjnqxO6c5pd

    • Remove white wire from the opposite side of the heating element.

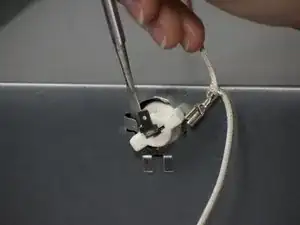

  11. tHcv1tiWbApsMiNE

    • Use a metal spudger to unfold the tabs of metal that hold heating element in place.

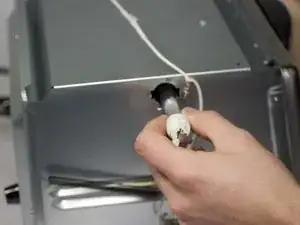

  12. UBKdANcYV566cNqs
    UBKdANcYV566cNqs

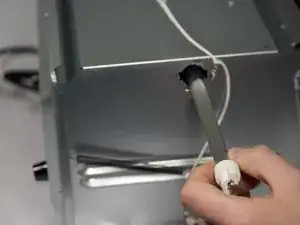

    HLWGyAIFjh6Aikit

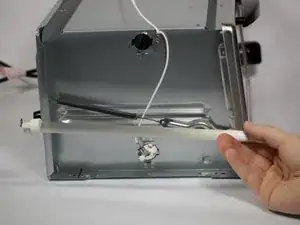

    2KGZVV5cVS6vIMhl

    • Gently push the heating element from the side with the red wire to remove it from the toaster.

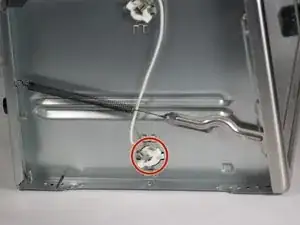

  13. 1MqHvCGVEv6oXpbJ

    • Repeat steps 1-4 for the second heating element.

Abschluss

To reassemble your device, follow these instructions in reverse order.
