Bella 4-Slice Toaster Oven Timer Replacement

Remove five 11.6 mm Phillips #2 screws from the rear of the device.

Open the front glass door of the toaster oven.

Locate retaining screw on the upper-middle portion of the door frame.

Remove one 21.9 mm Phillips #2 retaining screw from upper-middle portion of door frame.

Flip toaster onto back panel with feet facing forward.

Use spudger to pry the grey rubber inserts from the black plastic feet.

Remove four 13.7mm Phillips #2 screws from black plastic feet to separate the cover from the device.

Lift the black outer cover off of the toaster

Using a plastic spudger, gently pry the black plastic timing dial away from the face of the toaster.

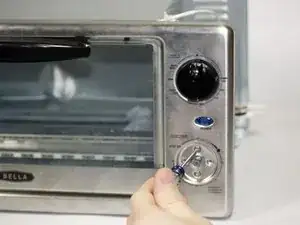

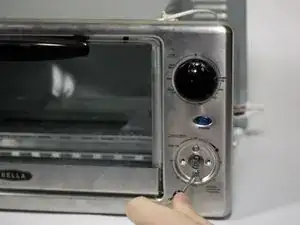

Remove two 5.91 mm #2 Phillips screws which secure the timer to the toaster.

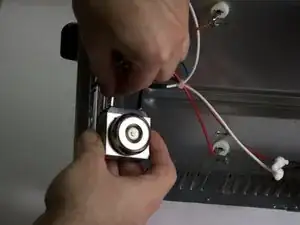

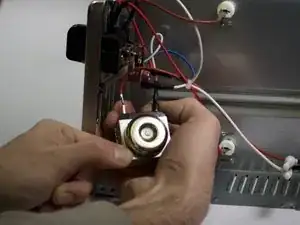

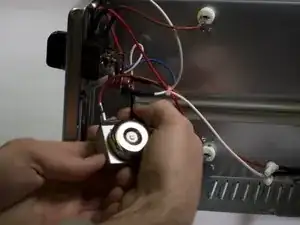

Inside the device, unplug the red and black wires from the top of the timer.

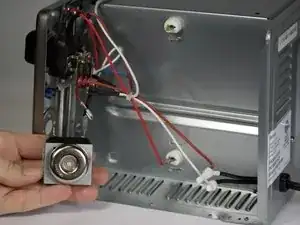

Remove timer from device interior.
