Einleitung

Actions speak louder than words especially when your speaker's broken. Speak up and follow this guide.

  1. UQcSDuKJDOoRhgCD
    • Peel the rubber cover back from the corner of the speaker to reveal the screw.

    • Repeat for the three remaining corners.

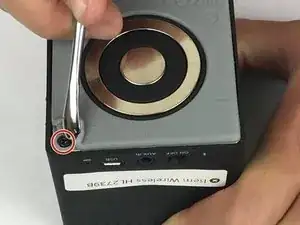

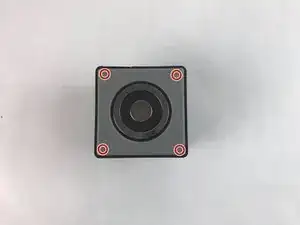

  2. ixdqv1XYR4otEFxv
    ixdqv1XYR4otEFxv
    FtLmVEcwmUpHBB6E
    IBVP5bPSjGaGcT3I
    • Use the J1 bit attached to the screwdriver to remove the four 10mm screws from the bottom of the speaker.

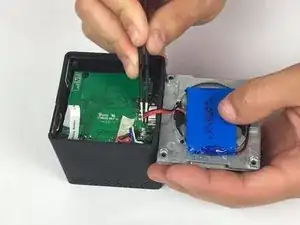

  3. Q1CiYk2KOAPJUw2i
    • Lift the bottom cover away from the rest of the speaker.

    • There are wires connecting the battery and cover to the rest of the speaker. Be careful when removing the base cover.

    • Using the tweezers, pull the wires from the speaker's internal chip.

    • Be careful not to damage the chip when you remove the wires.

    • It will likely require soldering to reassemble the speaker after this step.

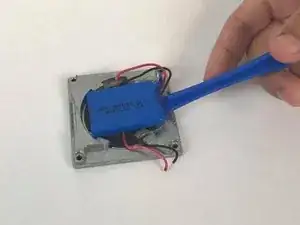

  4. LL6hBYCuQNv2OGnQ
    • Using a plastic opening tool, gently pry the battery from the metal base.

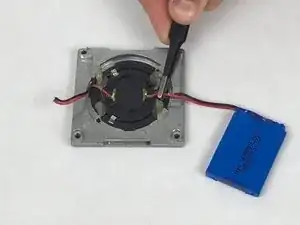

  5. 52HqYNcQoIjtNgcr
    • Using tweezers, pull the wires from the metal base connection.

    Why remove the wires from the internal chip when all you have to do is remove and resolder the wires attached to the battery itself??

    wes -

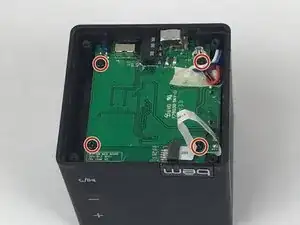

  6. yQZVIKUHExAsKRcI
    yQZVIKUHExAsKRcI
    RLfhx4g4LvMlgB2a
    • Unscrew the four 10mm screws from the motherboard.

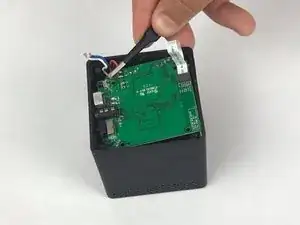

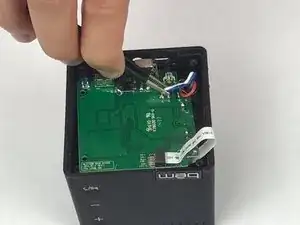

  7. BlYjePmHeTMfcUHs
    BlYjePmHeTMfcUHs
    4FefyWFNod5W6IrH
    • Using tweezers, remove the blue/white and red/black wires from motherboard.

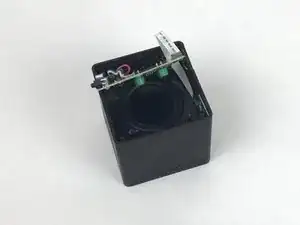

  8. FrcuerPrCLoYApIv
    FrcuerPrCLoYApIv
    GIJKdi3BbZObnCmx
    • Gently re-position the motherboard so you can access the bus wire connected to the speaker.

    • Remove bus wire from the speaker and lift out the motherboard.

  9. rDwykZHEqyRZVe3o
    • Using tweezers remove excess glue that may be covering the screw holes of the speaker's driver.

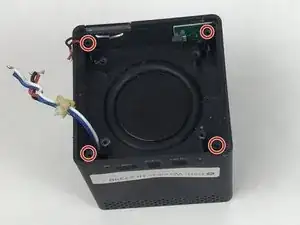

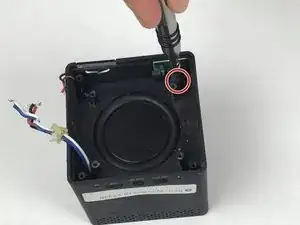

  10. U2NUPwWarTpHUjon
    U2NUPwWarTpHUjon
    DiWKTdpgiSFnckQL
    • Remove the four 10mm screws from speaker's base.

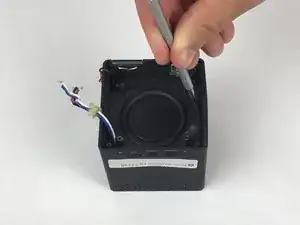

  11. tqHrBaTFMdjBqlU1
    tqHrBaTFMdjBqlU1
    jpVDQMNgaYddDN1x
    • Using the metal spudger, pry up on the speaker's base.

    • This will require a moderate amount of force.

    • Pull the wire from the speaker's driver's base from the hole it was in.

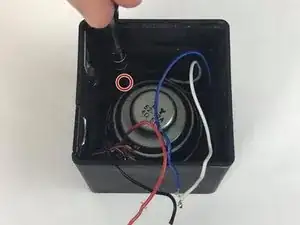

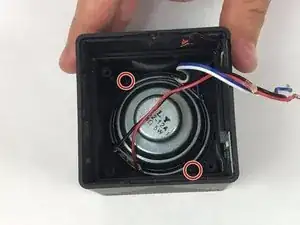

  12. Hm4NomIoCKFOVmiF
    Hm4NomIoCKFOVmiF
    5vhAhIKhES3UlA3O
    • Remove the two 5mm screws from the speaker.

    • Lift the driver from the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
