This is a basic step-by-step guide on how to replace handlebar tape on a bicycle. Whether the bar tape on your bike is ripped, worn-out, or just plain missing, this guide will allow you to replace the tape all by yourself!

  1. TXDTqtUyhQRlfQKc
    TXDTqtUyhQRlfQKc
    HtK3DaQQZGbEsLMU
    h1pZHMn4MJWOPfli

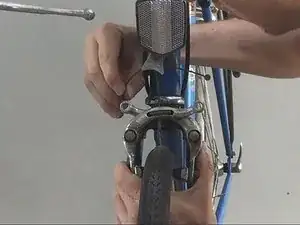

    • Undo the brake cables holding the brake calipers under tension.

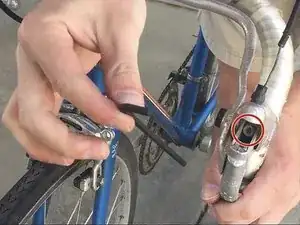

    • Depress the brake/shift levers (brifters) and insert a 5mm Allen key into the internal bolt. This bolt secures the brifters to the handlebar.

    • With the 5mm Allen key, loosen and temporarily remove brifters.

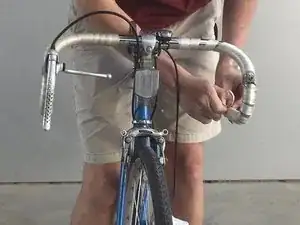

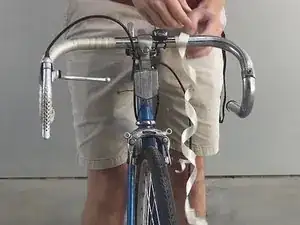

  2. NqbjnWTwodfTgKQk
    NqbjnWTwodfTgKQk
    BDNtHWMwsgicQeS3
    WsCgNajrNCTtTHtc
    • Remove the old tape and discard.

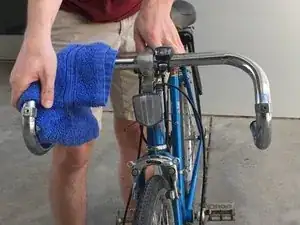

    • Pour some rubbing alcohol on the rag and clean any old adhesive residue off the handlebar.

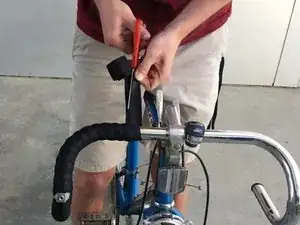

  3. egXVDrKRpnxnh4Ic
    egXVDrKRpnxnh4Ic
    hq3mYUkDnNolMDgE
    CIihBZEF1eFbTCAG

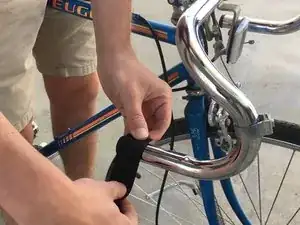

    • Starting on the right side of the handlebar, wrap the new tape around the end in a clockwise direction moving inward.

    • Be sure to wrap the tape tight, but don't pull so hard that it rips!

    • Using the scissors, cut the tape at an angle towards the outside of the bar.

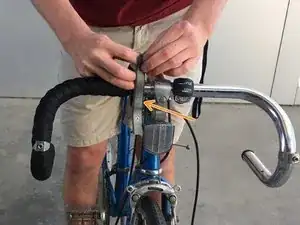

    • Wrap the loose end with either electrical tape or the adhesive piece provided with the handlebar tape (pictured here)

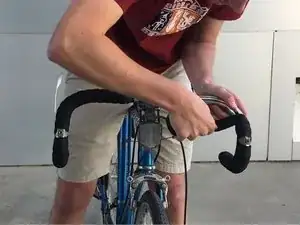

  4. 2s3yngtiESk1SRSe
    2s3yngtiESk1SRSe
    1NYaXW6QHWuIjZmP
    s5nOG3dHTynwQuKM
    • On the left side of the handlebar, wrap the tape around the end in a counter-clockwise direction moving inward.

    • Wrap tight, but don't rip!

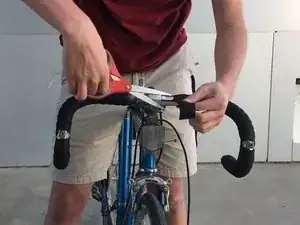

    • Using the scissors, cut the tape at an angle towards the outside of the bar.

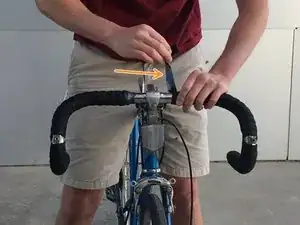

    • Wrap the loose end with either electrical tape or the adhesive piece provided with the handlebar tape (pictured).

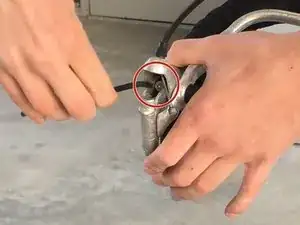

  5. mVEZSKnflGs2fgtx
    mVEZSKnflGs2fgtx
    PtqcNKXwlEE351l2
    • Using the 5mm Allen key, reattach and tighten the brifter levers onto the handlebar.

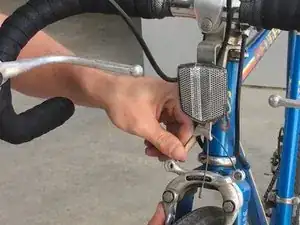

  6. s4KFZovvNPhaWURk
    s4KFZovvNPhaWURk
    JsRDtysUmMSPOIHQ

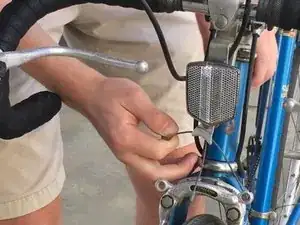

    • Reattach the brake cables to the brifters and brake calipers

    • Depress the brake levers a couple of times to test and confirm that the cables were reinstalled properly before riding.
