Billy Goat Brush Cutter BC2600HHF 2015 Blade (Spindle) Belt Replacement

Geschrieben von: Jeff Suovanen

Kommentare: 3

Billy Goat Brush Cutter BC2600HHF 2015 Blade (Spindle) Belt Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

The brush cutter contains both a smaller transaxle drive belt and a large blade/spindle belt. The transaxle drive belt must be removed first in order to access the spindle belt.

Werkzeuge

Ersatzteile

Billygoat Belt 6972 Powerated 501220

Schritt 1

Grab the plastic housing at the end of the spark plug wire.
Pull firmly to disconnect the wire from the spark plug.

Schritt 2

Use a 1/2" socket or wrench to remove the two 26 mm bolts securing the rear guard to the back end of the brush cutter.

Schritt 3

The brush cutter is heavy—get help before attempting to lift it.
If you choose to tip the brush cutter onto its side, first drain the oil and gas.
Raise and support the back end of the brush cutter—or tip it carefully onto its side—in order to access the bottom cover.

you can tip unit on its side if the carbeuretor is on the top when it is on its side

NORMAN -

Schritt 4

Use a 3/8” socket or wrench to remove the four 21 mm bolts securing the rear guard.
Remove the guard.

Schritt 5

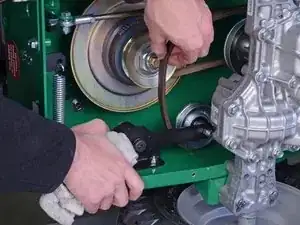

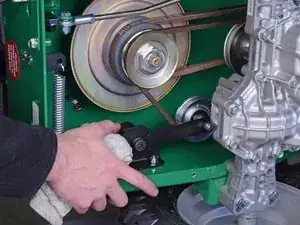

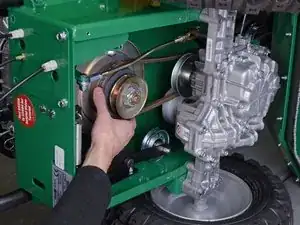

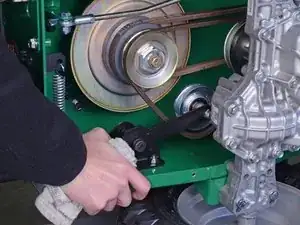

Relieve the tension on the transaxle drive belt by pressing on the back end of the tensioning arm. (Alternatively, use a pry bar on the front end of the tensioning arm, or remove the tensioning spring.)

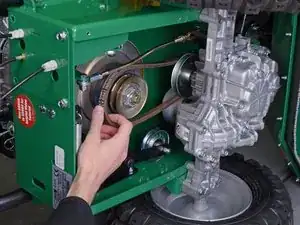

Slip the transaxle drive belt off the drive pulley.

Schritt 6

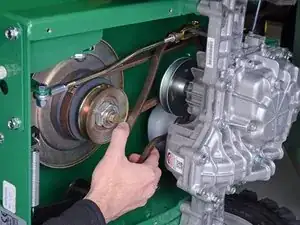

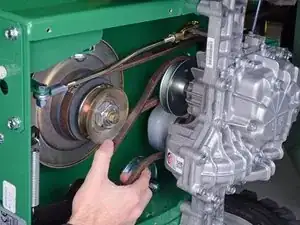

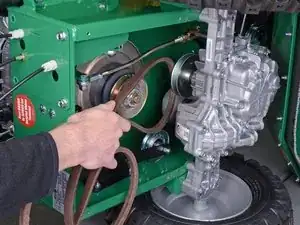

Free the belt by sliding it out between the transaxle pulley and the spindle belt.
Remove the transaxle drive belt.

If you attempt to turn this unit on it’s side be aware of the hydraulic fluid system, not just the gas and engine oil. If you look at the first picture of step 6 you will see the white plastic reservoir in the center of the picture “on top” of the transaxle. It has a black plastic filler cap. Also refer to parts diagram to see the complete assembly. In theory it should not leak but check the cap for tightness before turning, and monitor it so you don’t have a mess and then have to refill the fluid, which is not easy in itself.

MICHAEL - 31/03/21

Me gustaría saber si puedo conseguir el manual de la desbrozadora Billy goat modelo BC2600HHF y en cuanto al cambio de las bandas está bien explicado

Juan Alberto Bal -

Schritt 7

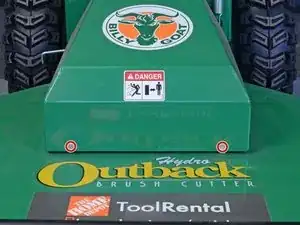

Use a 3/8" socket or wrench to remove the four 21 mm bolts securing the cover to the deck—two at the front, and one on each side.

Schritt 8

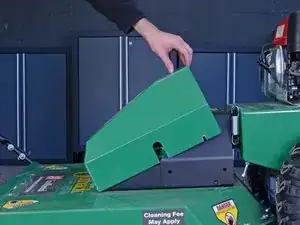

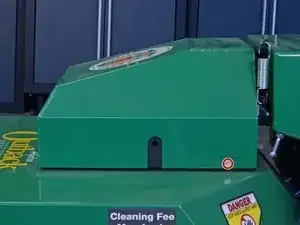

Lift and remove the belt deck cover.

Schritt 9

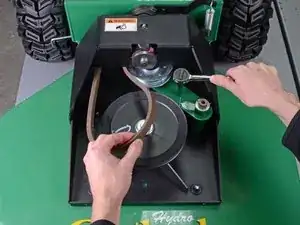

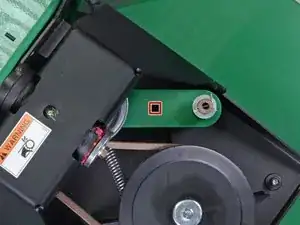

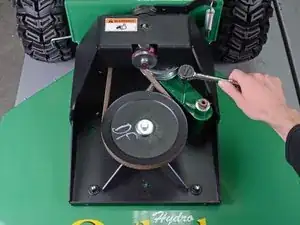

Insert a 3/8" drive ratchet (without any socket attached) into the square cutout in the middle of the deck idler arm.
A short extension is helpful but not required.

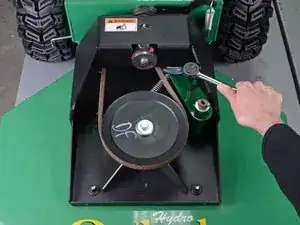

Crank the ratchet clockwise to relieve the tension on the belt.
