Billy Goat Brush Cutter BC2600HHF 2015 Blade Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Follow these instructions to remove and replace the cutting blade, either to sharpen a dull blade or replace it entirely.

  1. rrAWyMrSGND5ZSNt
    rrAWyMrSGND5ZSNt
    YNSyw6SQVQdHslCW

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. QRLYlTe4mxiKFcLg
    QRLYlTe4mxiKFcLg
    GWl4ZlHStIoCeFoQ
    u6UZXmdlbWNHEUYc

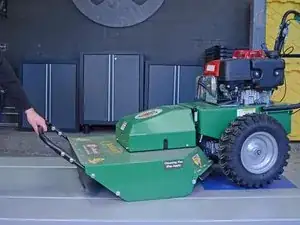

    • Lift to raise the front end of the brush cutter.

    • Place a jack stand or other secure support under the deck to prevent the brush cutter from tipping forward.

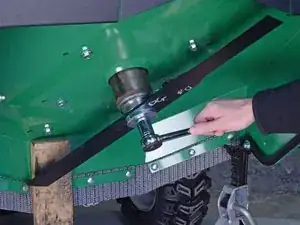

  3. cKOhaHHEwnu6sydO
    cKOhaHHEwnu6sydO
    oxlhiFh5l4ZFTPPH
    mp32tG3tXWGTN6Nj

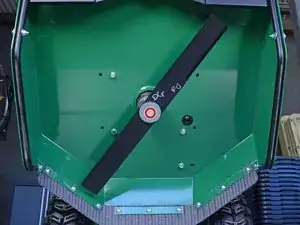

    • Use a 13/16" socket to remove the bolt securing the blade.

    • If needed, wedge a wood block between the blade and the deck to prevent the blade from turning.

    • During reassembly, make sure the blade is fully seated on the spindle, and use a torque wrench to tighten the bolt to 33-38 ft lbs.

  4. 2SeFGCsrxry1qvRd
    2SeFGCsrxry1qvRd
    WVOJ5ouYMM5JIwL5
    TJSlIfdmYSnvU5ZS

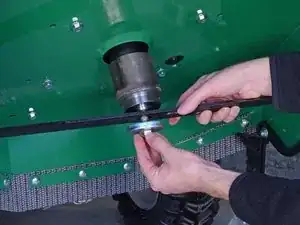

    • Wear gloves or be careful when handling the blade.

    • Remove the bolt and friction washer, and remove the blade.

    • Use a new bolt and washer when replacing the blade.

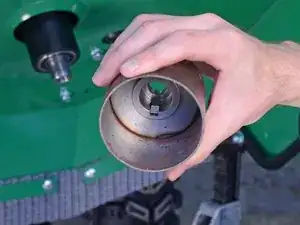

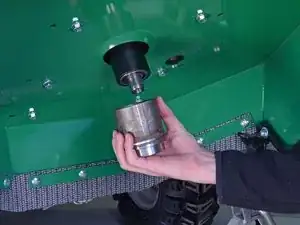

    • If the large cylindrical blade adapter falls off the spindle, check to make sure the key is correctly positioned inside the adapter, and then align the key with the notch on the spindle when installing it.

  5. 5mjKoZkQMBTxCWZx
    5mjKoZkQMBTxCWZx
    TZZAlvbJ5iFnSPRF
    VNRxln534DwkN6qC

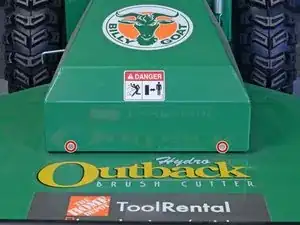

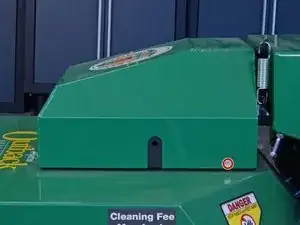

    • Use a 3/8" socket or wrench to remove the four 21 mm bolts securing the top cover to the deck.

  6. 6ZXNU1Ijk2pTWnIW
    6ZXNU1Ijk2pTWnIW
    5HhcU6NPKmCWP2Nq

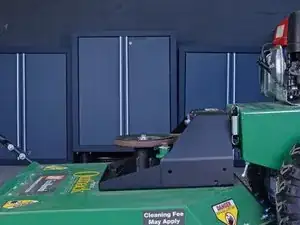

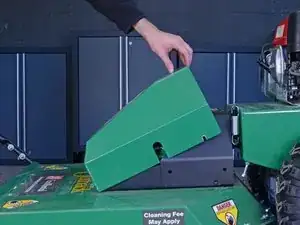

    • Lift and remove the top cover.

  7. ATFugMw2FUKkLyqr

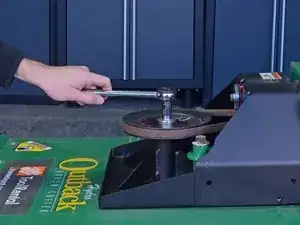

    • Using a 9/16” socket or wrench, make sure the bolt at the top of the spindle is tight.

Abschluss

To reassemble your device, follow these instructions in reverse order.
