Billy Goat Brush Cutter BC2600HHF 2015 Rear Guard Replacement

Geschrieben von: Jeff Suovanen
  • Kommentare: 1
Billy Goat Brush Cutter BC2600HHF 2015 Rear Guard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Instructions for removing the rear guard/cover to access internal components for service.

  1. rrAWyMrSGND5ZSNt
    rrAWyMrSGND5ZSNt
    YNSyw6SQVQdHslCW

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. mEL4fLQrQlGTJtQJ

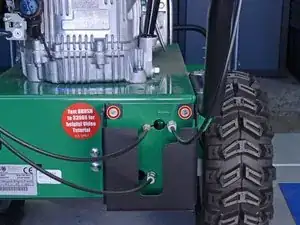

    • Use a 1/2" socket or wrench to remove the two 26 mm bolts securing the rear guard to the back end of the brush cutter.

  3. ycaFgSvLHWZcbNfg
    ycaFgSvLHWZcbNfg
    aMmUcJveugrZDyfB

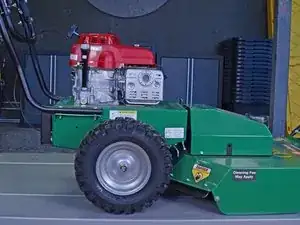

    • The brush cutter is heavy—get help before attempting to lift it.

    • If you choose to tip the brush cutter onto its side, first drain the oil and gas.

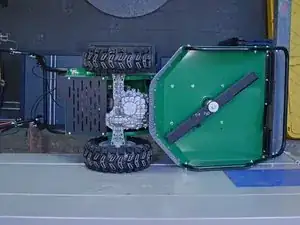

    • Raise and support the back end of the brush cutter—or tip it carefully onto its side—in order to access the bottom cover.

    you can tip unit on its side if the carbeuretor is on the top when it is on its side

    NORMAN -

  4. SL3HUEWXSGyoXSoQ
    SL3HUEWXSGyoXSoQ
    5HcZppCaJwjhfUs1
    3PbNDatKCMh41ELN

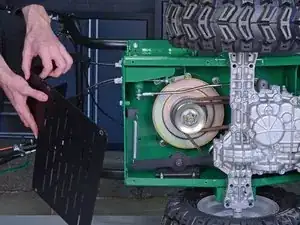

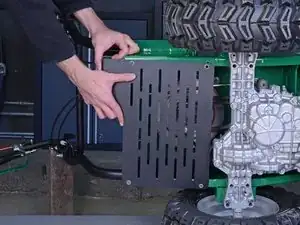

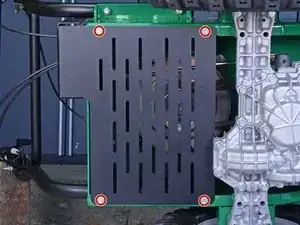

    • Use a 3/8” socket or wrench to remove the four 21 mm bolts securing the rear guard.

    • Remove the guard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
