Billy Goat Brush Cutter BC2600HHF 2015 Throttle Control Replacement

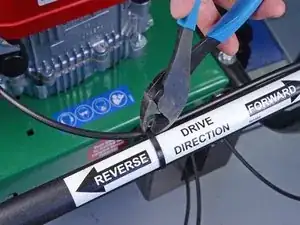

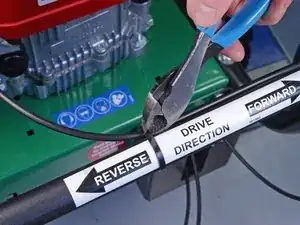

Cut and remove any zip ties securing the throttle cable.

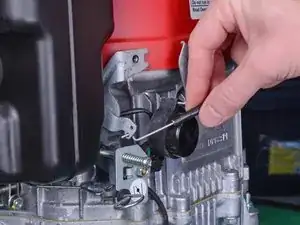

Use a Phillips #2 driver to remove the screw securing the lower end of the throttle cable.

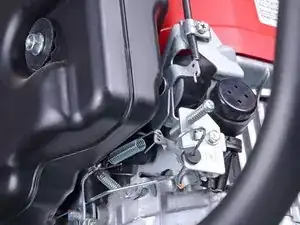

Remove the bracket securing the lower end of the throttle cable.

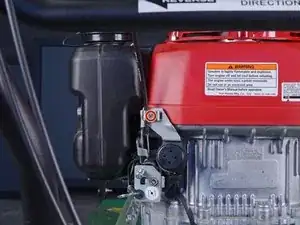

Rotate the lower end of the throttle cable to detach it from the throttle.

If necessary, loosen the screw securing the lower end of the throttle cable and adjust the position of the cable. Re-tighten the screw and check to make sure that the throttle moves through its full range of motion.

Use a 7/16" wrench or deep socket to remove the cap from the throttle control.

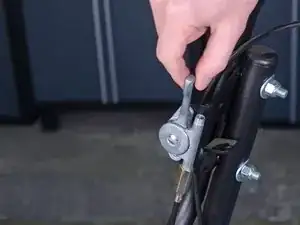

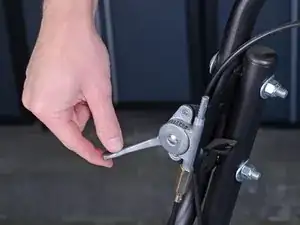

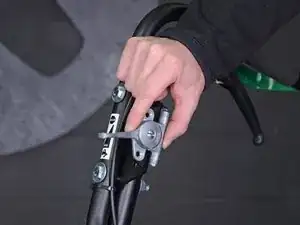

Advance the throttle control to expose the gear rack containing the upper end of the throttle cable.

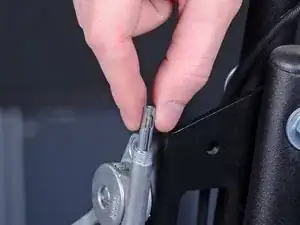

Separate the gear rack from the upper end of the throttle cable.

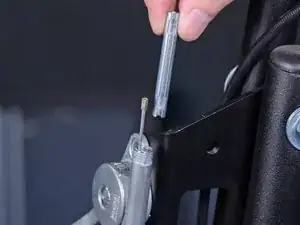

Lift and remove the gear rack from the throttle control.

If the gear rack doesn't fully detach, advance the throttle control lever a little farther.

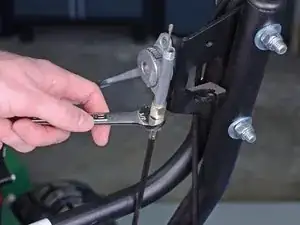

Use a 1/2" wrench to unscrew the upper end of the throttle cable from the throttle control.

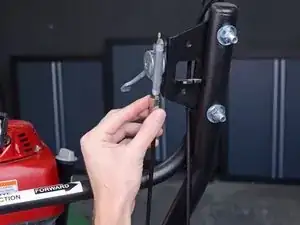

Slide the throttle cable down out of the bottom of the throttle control, and remove the cable.

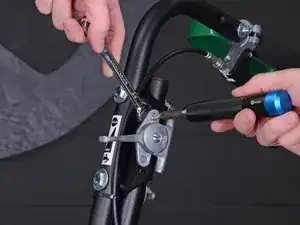

Use a Phillips #2 driver to remove the two screws securing the throttle control.

While removing the screws, use a 3/8" wrench to counter-hold the lock nuts and prevent them from rotating.

Remove the throttle control.
