Einleitung

What's going to happen in this replacement guide is the deconstruction of the Bionaire BAP 600 air purifier in order to de-solder the LED bulb from the LED Night Light.

  1. JfROgrTrGLwy2wVE
    • Rotate base counterclockwise, supporting top with opposite hand.

  2. HenMIsTIyVPHY6X1
    • Pull base away from housing exposing air filter.

  3. hYR1gBVTNUw4TDXF
    • Grab the edge of the filter housing and pull the filter away from the rest of the device.

  4. kCogybbJuMRPJaXp
    • Gently pull apart each fold of the filter to check for abrasions or other anomalies. Clean with a dust rag if necessary.

  5. LD1WOLRVavFXqECn
    • Remove all 6 screws from the LED housing.

  6. QHUUXnBSK34IXpQR
    • After the 6 screws are removed, remove the LED housing from the bottom of the device by lifting it off.

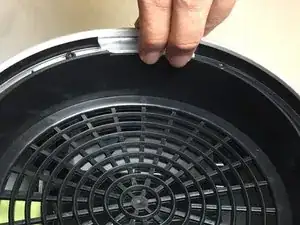

  7. qd1DALGTB6uTaE1W
    • Using two fingers lift the translucent LED cover from the inside. Repeat this step for the second tab.

  8. FBrH6tPSfTYWahtQ
    • After lifting 45 degrees, pull the translucent tab away from thee housing. Repeat this step for the second LED cover.

  9. 6GfHXSsOPFSwDS3d
    • Locate the tab about 1 inch below the top vent. Insert a flat tool laterally past the tab and press in toward the center of the device. As the tab is being held down, pull the two halves of the egg apart to keep the shell open.

  10. yCbRyoQJLgSYCXVh
    • Locate the second tab on the back of the device approximately 2 inches above the power cord.

    • Insert the flat tool at a slight angle toward the left of the power cord. Depress the tab and pull the two halves of the shell apart.

  11. ZZiyePSTSkFUQPOO
    • Locate the bottom tab on the front side at the same height as the bottom tab on the back side.

    • Depress the tab using a flat tool at a slight angle and pull the halves apart.

  12. EcKnbFjYBSf2pFTW
    • Locate the last tab about one inch below the top on the front side.

    • Depress the tab using the flat tool at a slight angle and finish pulling the removable half of the shell off.

  13. cDtPYqiSsqqT6VGI
    • Locate the screw housing opposite of the control board, and remove the screw.

  14. yJPEOLHeRCtFTnK5
    • Locate the control board and grab it by the top and bottom firmly. Pull the board straight out being careful not to flex the circuit while removing.

  15. 5tYKUSyfcfmvSSfG
    • Locate the screw that was being hidden by the control board and remove it to release the second half of the shell.

  16. kRFBlyLM1yQ4Ynio
    • Remove the released half of the shell to finish removing the entire outer shell of the device.

  17. Udds13ZQyrdhbwJR
    • Next, once you see the interior of the air purifier there will be male ports with cables coming out of these ports as seen below. Thus, it is easy as taking the two wired male port (black and red) by pulling it towards you as seen below.

    • Note: There will be zip ties that are connecting the black and red wires together. Cut the zip ties.

  18. IwXQEimEQC1dDfkl
    • Note: Pull the circuit board with the LED bulb underneath the air purifier gently in order to change out the LED bulb.

    • Now, use a soldering kit in order to de-solder the solder that’s on the circuit board with the LED light as seen below. Hence, once you de-solder the solder from the LED light’s wires you can move on to the next step.

  19. EWsgADbusmhHGVsG
    • Next, the last step is to gently remove the LED light from the circuit board and replace the bad LED light bulb with a new one as shown below.

Abschluss

To reassemble your device, follow these instructions in reverse order.
