Bionaire BAP 600 Transformer Replacement

Geschrieben von: Alexander Tarancon
  • Kommentare: 0
Bionaire BAP 600 Transformer Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Bionaire BAP 600 Transformer Replacement

  1. ASOCXVxbLBE6vWTd

    • Unplug 7 pin connector

  2. aQBoVIIyyusrR1Lk

    • Unplug 2 pin wires which connects the front LED's.

  3. DQieNoNMMFTGdImD
    DQieNoNMMFTGdImD
    wyokgchgdBtudAWn

    • Remove two screws

  4. XgeKHQGpPrWIp1HW

    • Unplug pins

    • Use scissors to cut zip ties

  5. 2GUZLdIophUsDKiU
    2GUZLdIophUsDKiU
    SFTWvBMBnCXLVXhB
    X2LsXybxtNhv6dwm

    • Unplug rest of pin connections

    • Remove Neutral and Hot wires

    • They are the two black wires

    • Pull them out

  6. MhWCrtHMwmoallZS
    MhWCrtHMwmoallZS
    PiZcfMyOEc1eKrLn
    15nIMcCDgpjIHjKi

    • Unscrew two screws

    • Inspect capacitor for any bulges ( if it has a bulge , it means it is need to be replaced)

    • Check for burnt solder in the back of circuit board

  7. V2IU4HsJRXqPJ2yF
    V2IU4HsJRXqPJ2yF

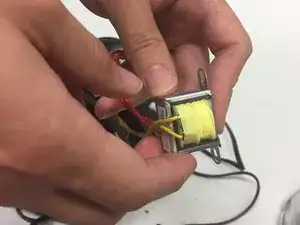

    kNNKKIvBJyP6vwcm

    • Use screwdriver to remove screws

Abschluss

To reassemble your device, follow these instructions in reverse order.
