Bissell Bolt ION 2-in-1 Cordless Release Button Replacement

Geschrieben von: Valeria Soto
  • Kommentare: 0
Bissell Bolt ION 2-in-1 Cordless Release Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will provide steps on how to replace the release button.

  1. OjMDGZwLDPOtSfRc

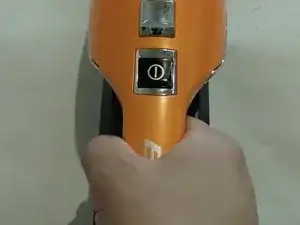

    OjMDGZwLDPOtSfRc

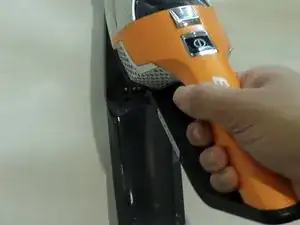

    RelGNESOeisadBWY

    • Grab the handle of the handheld vacuum.

    • With great force, remove the handheld vacuum from the entire unit.

  2. 4m1IPhT1bkGiHNGW

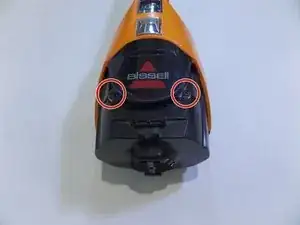

    4m1IPhT1bkGiHNGW

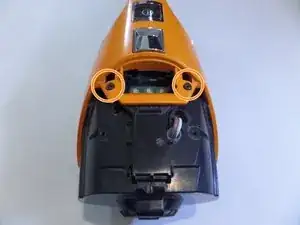

    rQBsWwnAERahnIk2

    • Remove the two 4.4cm screws using the 2.0 screw.

    • Remove the two 4.4cm screws using the 2.0 screw.

  3. Xjj3mdDfjhMVQLsN

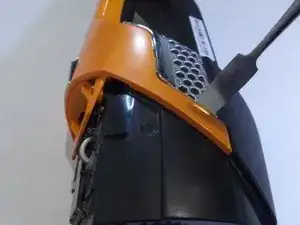

    Xjj3mdDfjhMVQLsN
    I1bctROSBL3AQO1S

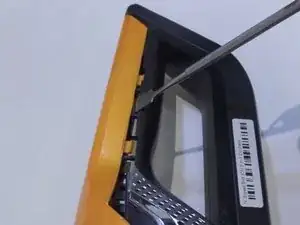

    hDqp3O5EPNmBRoU1

    • Using the metal spudger, insert and lift up to remove the frame from the body.

    • Move along the line and repeat on the other side.

  4. pKIBNNowQZxA3HJE

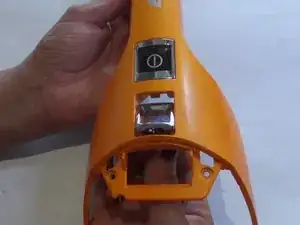

    pKIBNNowQZxA3HJE

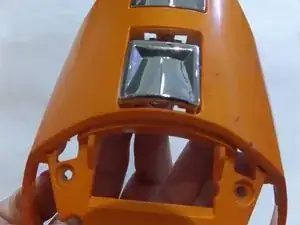

    TyayJxYFEwcM2EUQ

    • When placing new button in make sure the bottom end goes in first.

Abschluss

To reassemble your device, follow these instructions in reverse order.
