Bissell ION Rechargeable Vacuums Lithium Ion battery pack schematic

Geschrieben von: Breikke Pelto
  • Kommentare: 2
Bissell ION Rechargeable Vacuums Lithium Ion battery pack schematic

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Schematic and instructions for replacing rechargeable battery pack for Bissell ION vacuums.

  1. O1MueePRexICOfQb
    O1MueePRexICOfQb
    LPqyPBAJ2YPB6PwG

    • Push the silver button to disconnect the dirt dish from the handheld vacuum.

  2. GEyqXIEQOdPm3kJM
    GEyqXIEQOdPm3kJM
    XHqbA1KSn16CTWyW

    • Remove the four 4 .4cm screws using your P0 screwdriver head and screwdriver.

    • Remove the Bissell sign to remove the two 4.4cm screws, using your P0 screwdriver head and screwdriver.

  3. BW23sAEwOVIWODeV
    BW23sAEwOVIWODeV
    hFYbNelxx4e2jKvV
    SNPSmolDfTda4SJu

    • Using the metal spudger, insert and lift up to remove the frame from the body.

    • Move along the line and repeat on the other side.

  4. CooK3goDxPBSEwsa
    CooK3goDxPBSEwsa
    p3V3GhW2aKXHoiXS

    • Remove the orange frame

    • Remove the 3 screws on the right side of the vacuum.

  5. YF3qgJ1PoUC1dNOQ
    YF3qgJ1PoUC1dNOQ
    ToJPrv6xRHBXOQfk
    eOHJXMcvUJBtXRju

    • With metal spudger remove the metal clip on both sides.

    • Pull device apart using great force

    Use a sharp knife blade to cut the product label down the seam on the bottom of the handle to make separation of the halves easier.

    Ted Cusber -

    Disconnect the two pin and the four pin VH connectors from the PCB assembly. Cut off the bullet splices from the red and black wires (be careful to not shorten the wires) to allow the battery to be removed. It would probably be wise at this point to use a small clean paint brush to clean the PCB assembly and inside of the handle. Bissel does not supply a replacement battery. Good Luck manufacturing a replacement.

    Ted Cusber -

  6. RD3WH64Ghm3cItPX

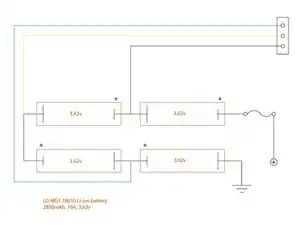

    • Three wires lead to a female connector, probably for cell balancing, voltage sensing, etc. They are blue, yellow and white (the black wire in this schematic.)

    • The batteries are 18650 Li-Ion, LG MG1: 2850 mAh, 10A 3.62v

    • The inline fuse on the (+) positive lead is F16AH250VP

  7. MbdWPWCtDP6YjiLN
    MbdWPWCtDP6YjiLN
    pkPWiGSXYbnHdjcE
    I1MuQmuFjxafbpVo

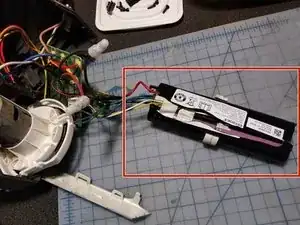

    • Detach old battery pack (photo 1) from circuit board. My power leads were crimped, and easily de-crimped with a needle nose pliers.

    • Gently pry 3-wire female plug from circuit board.

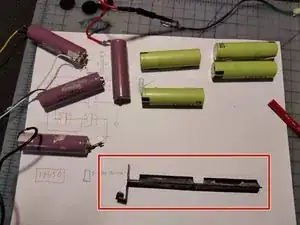

    • Disassemble/desolder old pack. Loose assemble the new batteries. I used the old holding bracket (photo 2) and wires.

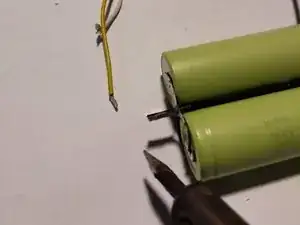

    • Solder batteries together according to schematic (photo 3.) Wrap completed pack in shrink wrap or electrical tape.

    • Connect (+) and (-) leads with crimps, solder, or small wire nuts. I used wire nuts.

    • Reconnect 3-wire plug to circuit board.

    • Place battery pack in handle location, and reassemble vacuum.

Abschluss

There are no replacement battery packs available for the Bissell Bolt-ION series of rechargeable vacuum cleaners. Shame.

But making your own is easy if you have moderate soldering skills.

Get replacement batteries with soldering tabs. Four new ones should be about $25.
