Bissell Pet Hair Eraser Motorized Brush Belt Replacement

Geschrieben von: Roman Dyagilev
  • Kommentare: 0
Bissell Pet Hair Eraser Motorized Brush Belt Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Occasionally, the motorized brush can stop functioning due to a failure in the belt. This guide shows how to replace the belt inside the motorized brush.

  1. DbtFfEK1rpffH3rj
    DbtFfEK1rpffH3rj
    GdgkkAjxXm2MQYsL

    • Turn power OFF.

    • Detach motorized brush from the vacuum.

  2. bphojkEm3P56W1RI
    bphojkEm3P56W1RI
    X2hViGXEwvG135mM

    • Use a spudger or a coin to turn the circular lock clockwise to unlock the brush roll.

    • Remove the lock cover.

  3. RxgTZxGUOOBG2Mgv

    • Lift brush out of the enclosure.

  4. vfpbQ2XyBcjCm2uZ
    vfpbQ2XyBcjCm2uZ
    EkdKrKXufBFu1Wji
    1LToSAQlcxksRE61

    • Remove the four 13.0 mm Phillips #0 screws and remove the green cover.

  5. iTQhrtLCG4AYMRkc

    • Take out the motor assembly.

  6. mjk3WvuoXSBdNAFE

    • Take the belt off the gear by using a spudger.

  7. UdgwAHBtXr4q2pBJ
    UdgwAHBtXr4q2pBJ
    ZsFAxqDu2BgVK1wm
    GHUSPTS1PMTcKIEj

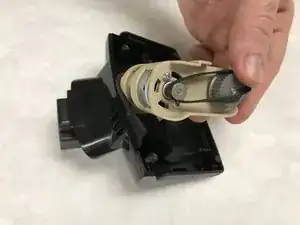

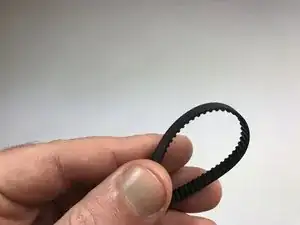

    • Grab the new belt and slide it on to the two gears.

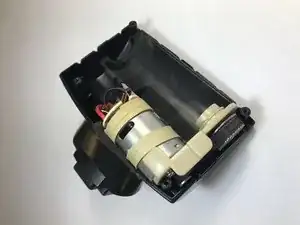

    • Place the motor assembly back into the motorized brush enclosure.

Abschluss

To reassemble your device, follow the motorized brush disassembly instructions in reverse order.
