Bissell SpotBot Pet Control Panel Replacement

Geschrieben von: Anthony Bonvino
  • Kommentare: 2
Bissell SpotBot Pet Control Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This is a guide on how to replace the spiral brushing system on a bissell spotbot pet. Use this if your spiral brushing system is not working properly.

  1. SEjADpJYXnBAr2IF

    • Start here.

    note to ifixit: we cannot edit the titles of each step

    Anthony Bonvino -

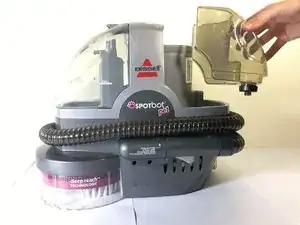

  2. cEkkqu3OoNNDicV1

    • Remove the container on the right side of the vacuum.

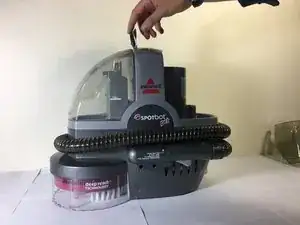

  3. MVyBI5k4glHNK5s6
    MVyBI5k4glHNK5s6
    hwZk5XCYDImFZQi6

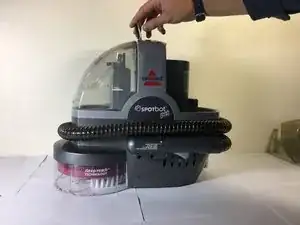

    • Lift the tap on top of the vacuum, and then remove the container on the left side of the vacuum.

  4. RpZwteamvg2cYCYG

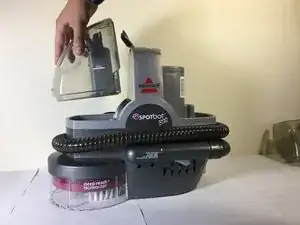

    • Remove the left container of the vacuum.

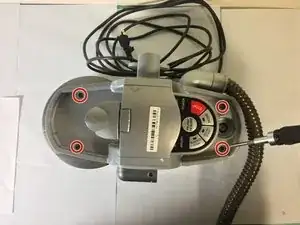

  5. UXvP5LjDdbHRVXDu

    • Remove the four screws on the top of the device.

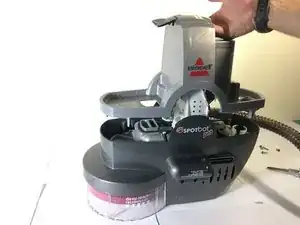

  6. vB2YBoXIQDsD5lqq

    • Lift the top of the device off once the screws are removed.

  7. yOD561IGMMFB3RaV

    • Unplug the ribbon cable from the motherboard.

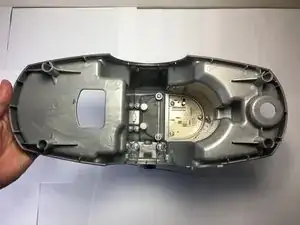

  8. BCRdSeO3UvTIyCWT

    • Separate the top piece and flip it upside down.

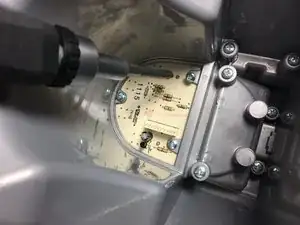

  9. gBcDU6FeBlmYArWr
    gBcDU6FeBlmYArWr
    PaPNDyARwkUybChb

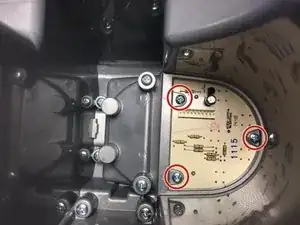

    • Remove the screws holding the motherboard in place.

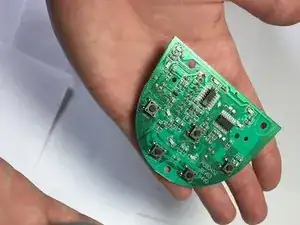

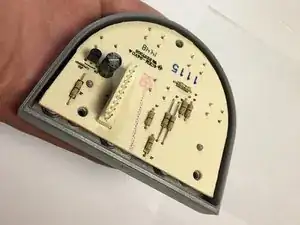

  10. TAeXxsTUNgtrpU5W
    TAeXxsTUNgtrpU5W
    wUBnqyaHOADevTF5

    • Remove the motherboard from the top piece. Repair or replace the motherboard if it is faulty.

Abschluss

To reassemble your device, follow these instructions in reverse order.
