The rice cooker contains a spring mechanism for locking the hot-plate into place while it is turned on. In this guide we will show how to identify if the spring mechanism is broken, and how to replace the spring if it is.

  1. uCovcZp3yKFle3n5
    • Make sure the device is unplugged before beginning disassembly!

    • Lift the lid and bowl from the top of the device.

  2. UIfLcskWvRmTMsmn
    • Turn the device upside-down, so that the four legs of the device point upwards.

  3. WtoKTOlNa5xh2R65
    WtoKTOlNa5xh2R65
    MCNtonMClwttmWAI
    • Each of the four legs has a rubber cushion on its bottom. For each cushion, insert a plastic opening tool between the plastic leg and rubber cushion, and pry off the rubber cushion.

  4. vZGklCWZhiRyCJsO
    • Using a spanner screwdriver, remove the one 10mm long 7mm diameter spanner screw from the side of the brass panel.

  5. e2cCk1faGLURKctk
    • Using a Phillips screwdriver, remove the 10mm long 7mm diameter Phillips-head screws from the inside of all four legs.

    • The smaller leg at the bottom is now loose and not attached to the device. Set it aside.

  6. MtEsV6xLHOalHsfh
    • Lift the brass plate off the device and set it aside.

  7. vALefhMlssBURoUf
    vALefhMlssBURoUf
    HNcMSQi5IPb13P1W
    • Color coordinating wire groups make it easier to identify the wire groups during reassembly.

    • Inside the device, there are three junctions with wires joined by Phillips-head screws. The first is connected to two wires, and the other two are connected to three wires each.

    • Unscrew the screw at the junction near the opposite side of the device from the front panel.

    • Label each of the two wires at this junction with a single color of tape.

  8. BRgMLVVuWWDRtKXl
    BRgMLVVuWWDRtKXl
    qPpWcDK1yU4pyux5
    • Unscrew the screw at the junction just clockwise from the button panel.

    • Label the three wires of this junction with tape of a second color.

  9. rVmJBSioX52r3U4Q
    rVmJBSioX52r3U4Q
    dRyqbZNIdXGkGdTZ
    • Unscrew the screw from the wire junction just behind the front panel.

    • Label the three wires at this junction with a third color of tape.

  10. nsyMHS1Yf2DnqLbN
    nsyMHS1Yf2DnqLbN
    fVEPXZjORJCrfAEY

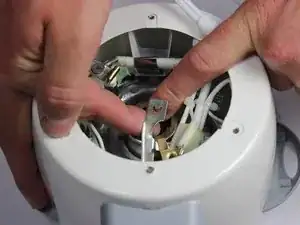

    • Using a pair of pliers, bend the spring latch from a "[" shape to a "c" shape so that it fits through the silver-colored latch that holds it. Then pull the silver-colored beam up so that it detaches from the brass beam.

  11. MVV42GTNXRsGuWS3
    MVV42GTNXRsGuWS3
    1PuBCWrPQdS2ROKt

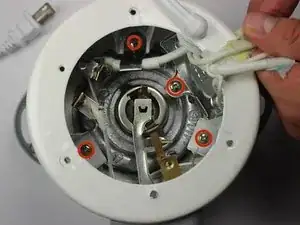

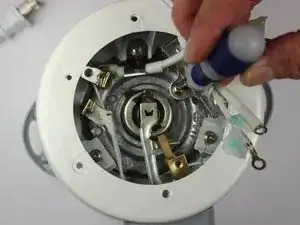

    • Unscrew the four 10 mm long 7mm diameter Phillips screws attached to the hotplate

  12. LBfDqn5sQiJEH31m
    LBfDqn5sQiJEH31m
    WEo4GmTwREhDsojb

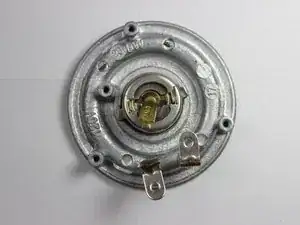

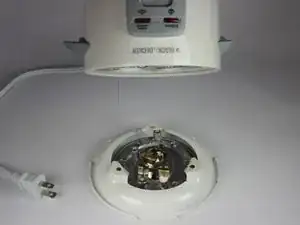

    • Carefully turn the device over, either allowing the hotplate portion of the device to fall out, or catching it as it falls out.

    • For the next step, make sure the hotplate portion of the device has its flat side facing down.

  13. H1mWaTXmFhUsqKdx
    H1mWaTXmFhUsqKdx
    lMyHyTmN2lte6Rpd

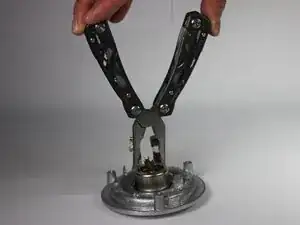

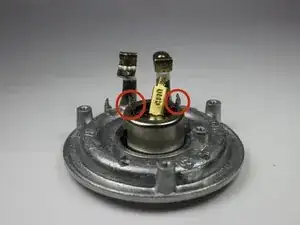

    • Position a pair of pliers so that they are outside the hotplate's two inner silver-colored rectangular plates.

    • Carefully push the plates together to unlock the inner portion of the hotplate.

  14. PQLlUbJTxfPsvJ2l

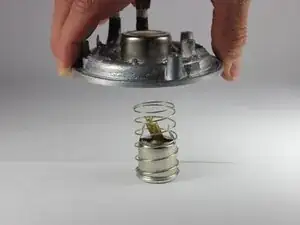

    • Remove the non-spring portion of the hotplate by lifting it up, exposing the spring and brass locking latch underneath.

  15. 4yvtvDIRDyeJlnVK

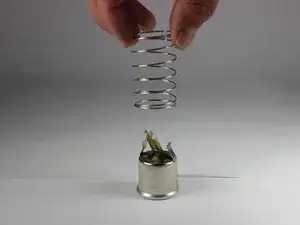

    • Remove the 47 mm by 30 mm spring, by pulling it up and off the locking latch.

    • If the spring is in multiple pieces, does not compress and spring back easily, or otherwise does not behave like a spring, you will need to replace it.

    • To reassemble your device, follow these instructions in reverse order. The two silver latches will need to be bent outwards separately, and the brass latch will need to be bent back into a "["or "(" shape by holding the pliers to a 90 degree angle of that in the instructions.
