Black and Decker BDERO100 Holder Brush and Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This guide describes how to replace the holder brush and spring assembly from the BLACK and DECKER BDERO100 5 inch sander. You will need the JIS - J1 bit driver or equivalent, TR20 Torx Security bit driver or equivalent, the plastic spudger & the plastic opening tool.

  1. 6hHgDRBmigJnMyjY
    6hHgDRBmigJnMyjY
    LSLVAQma6YkTtddc

    • Use the nylon spudger to remove the rubber ring from the filter attachment section.

    • The easiest way to do this is to place the spudger sideways and pulling out the ring.

  2. Y2Eyt5kuLcCmH6FV
    Y2Eyt5kuLcCmH6FV
    A6BV3kAT2ug4CNFN

    • Use the TR20 Torx Security bit driver to unscrew the five 18.75mm Phillips screws from the warning label side of the chassis.

  3. vV5HYSa3KgvZXMxG
    vV5HYSa3KgvZXMxG
    o3awwJsULEv2rNtS

    • Grab the plastic opening tool and place it on the separation line between both sides of the chassis.

    • Separate both sides and open the device.

    • Be careful not to lose or detach any internal parts while opening the sander.

  4. sfZsfcDxIlEeTnHb
    sfZsfcDxIlEeTnHb
    rILLZM5ZGgMk5lay

    • Hold the chassis and separate it from the device.

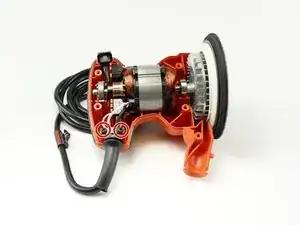

  5. 2JnqY6KoFVy1PaTe
    2JnqY6KoFVy1PaTe
    XYsJ4wgNfBUyOCSw
    p52ow31hNZ3Tb1lK

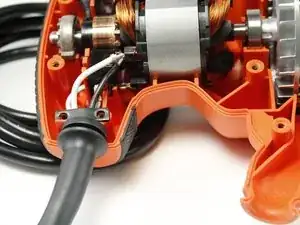

    • Use the bit driver with the JIS - J1 bit to remove the two 12.5 mm phillips screws holding the cord clamp to the chassis.

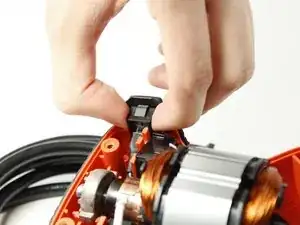

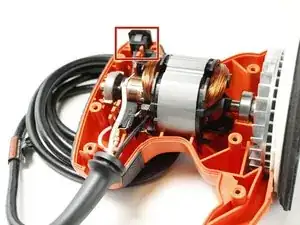

  6. RgKiEs2xIFiFai2g
    RgKiEs2xIFiFai2g
    xOIu6KIOYqBcfsgK

    • With yout hands, hold and separate the power button from the external case by pulling gently.

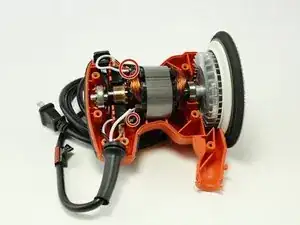

  7. VWKHkEHOwXvpOGPx

    • Identify the white cables connected to the holder brush and spring.

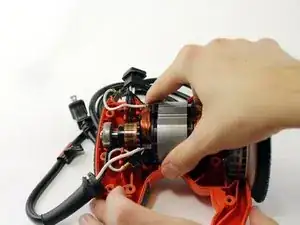

  8. e2wSiwexD2IGlS6P
    e2wSiwexD2IGlS6P
    qKhqYgRDVLCYOtop

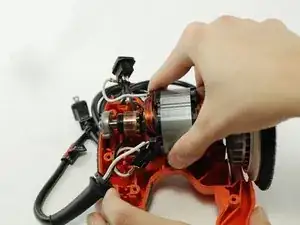

    • Hold the motor and gently pull to remove from chassis.

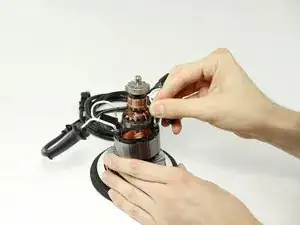

  9. nY3jAElPs1PMlwTw
    nY3jAElPs1PMlwTw
    GwrC4B1fLQnHNAuM
    uQuhGBGmC2adENEQ

    • Remove the wire connected to the brush holder from the motor by pulling gently.

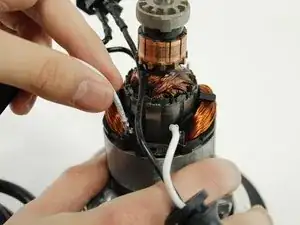

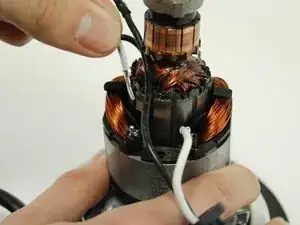

  10. j2dgBDWivjE6Z5sT
    j2dgBDWivjE6Z5sT
    XdcEE3H52ZwHGWrY
    CyoRawHEwJPBKTbV

    • Remove the wire connected to the brush holder from the motor by pulling gently.

    • Make a note of where each wire should be, you will avoid making wiring mistakes when assembling the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
