Black and Decker BDERO100 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

This guide describes how to replace the motor assembly from inside of the BLACK and DECKER BDERO100 5 inch sander. The tools that you will need for this process are the TR20 Torx Security bit driver or equivalent, the plastic spudger & the plastic opening tool.

  1. HVr4OSaNnWbTkNxq

    • Remove the sanding paper from the velcro.

  2. m43WmetVWWCtm2Aq

    • Select the JIS - J1 bit or the most appropriate bit to match the screws for your model.

  3. AFeqg5hBJZaHmLJA
    AFeqg5hBJZaHmLJA
    DSOlqnSamIKYQoR1

    • Use the Bit Driver to take off the four 12.5 mm Phillips screws at the base of the hook-and-loop system.

    • Be careful not to lose the lock washers (black rings).

  4. kwWND5sMmOW6PdWd
    kwWND5sMmOW6PdWd
    XUO2fUBM3FJ1UqXX

    • Once all screws and washers have been removed, hold the hook and loop system and separate it from the device.

    Where can I find the right pad for this model?

    mymommaluvsjesus -

    Where can i find the white rubber that is under the loop system, it is broken

    Tanya -

    I need the white rubber seal, does anyone know the parts number?

    Michael Holliness -

  5. 6hHgDRBmigJnMyjY
    6hHgDRBmigJnMyjY
    LSLVAQma6YkTtddc

    • Use the nylon spudger to remove the rubber ring from the filter attachment section.

    • The easiest way to do this is to place the spudger sideways and pulling out the ring.

  6. Y2Eyt5kuLcCmH6FV
    Y2Eyt5kuLcCmH6FV
    A6BV3kAT2ug4CNFN

    • Use the TR20 Torx Security bit driver to unscrew the five 18.75mm Phillips screws from the warning label side of the chassis.

  7. vV5HYSa3KgvZXMxG
    vV5HYSa3KgvZXMxG
    o3awwJsULEv2rNtS

    • Grab the plastic opening tool and place it on the separation line between both sides of the chassis.

    • Separate both sides and open the device.

    • Be careful not to lose or detach any internal parts while opening the sander.

  8. sfZsfcDxIlEeTnHb
    sfZsfcDxIlEeTnHb
    rILLZM5ZGgMk5lay

    • Hold the chassis and separate it from the device.

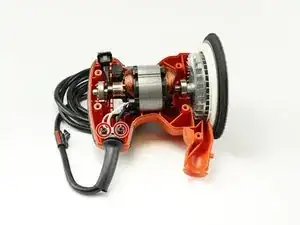

  9. cDUvrNIkPNpSUnZS
    cDUvrNIkPNpSUnZS
    eSFvFXFdNOWXOjf3
    ngBLH5DnoZLuXgsM

    • Use the bit driver with the JIS - J1 bit to remove the two 12.5 mm phillips screws holding the cord clamp to the chassis.

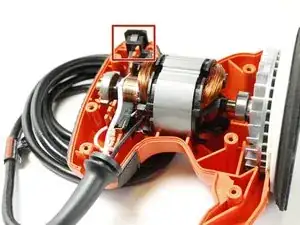

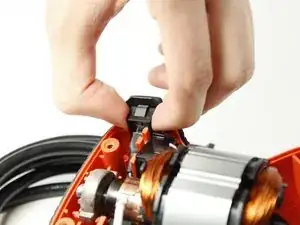

  10. XAG1sFGpAbsvcWgj
    XAG1sFGpAbsvcWgj
    IuVYIsGlZv4GHy2a

    • With yout hands, hold and separate the power button from the external case by pulling gently.

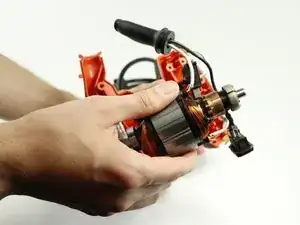

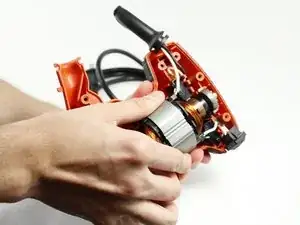

  11. VItWOIlyWdTULfX4
    VItWOIlyWdTULfX4
    hcHoMC35D23phadQ

    • Hold the motor and gently pull to remove from chassis.

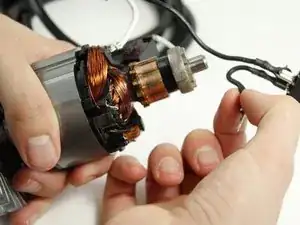

  12. jCWAuyWVqHsWI5i1
    jCWAuyWVqHsWI5i1
    1t6SCSgB4BQRVC1o
    SHPmACofPVCspNbF

    • Gently pull on all cables connected to the motor to remove.

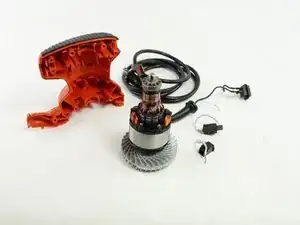

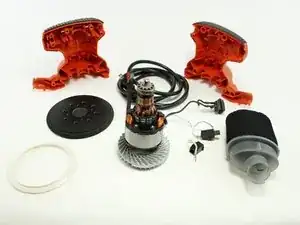

  13. 5IiC2IwnDfHAHiCD
    5IiC2IwnDfHAHiCD
    DFrVMnRCnWuCDAyZ

    • Once all cables are disconnected, you can proceed to replace the motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
