Black and Decker BDERO100 Power Button Replacement

Geschrieben von: Irene Zubillaga

Kommentare: 0

Black and Decker BDERO100 Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

This guide describes how to replace the power button from the BLACK and DECKER BDERO100 5 inch sander. The tools that you will need for this process are the TR20 Torx Security bit driver or equivalent, the nylon spudger & the plastic opening tool

Werkzeuge

Schritt 1

Use the nylon spudger to remove the rubber ring from the filter attachment section.
The easiest way to do this is to place the spudger sideways and pulling out the ring.

Schritt 2

Use the TR20 Torx Security bit driver to unscrew the five 18.75mm Phillips screws from the warning label side of the chassis.

Schritt 3

Grab the plastic opening tool and place it on the separation line between both sides of the chassis.
Separate both sides and open the device.
Be careful not to lose or detach any internal parts while opening the sander.

Schritt 4

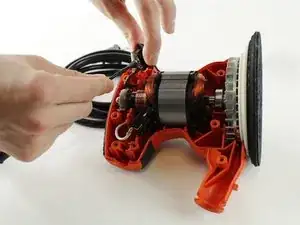

Hold the chassis and separate it from the device.

Schritt 5

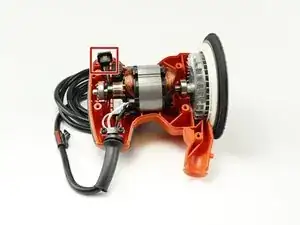

Hold the power button and pull it out of the chassis.

Schritt 6

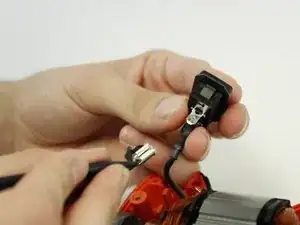

Select the cable that connects to the power button.

Schritt 7

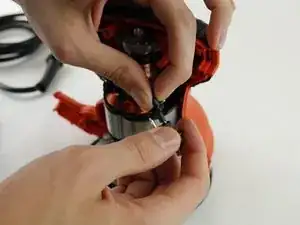

Expose the cable and lock system by peeling off the electric cover.
When attaching the new power cord you will need to make sure to cover this lock system with electrical tape.
