Black and Decker DustBuster 15.6V Nozzle Brush Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The nozzle brush located on the end of shaft may break off during the cleaning process. Replacing the brush is as easy as breaking it off.

  1. TDVXZH3vZENWadKV

    • Lift Nozzle Brush until it clicks into fully erect position.

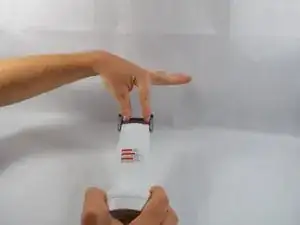

  2. jjwJ55JTvXLNgWOH

    • Apply a gentle, equal pressure outward, to the inside of both brush legs.

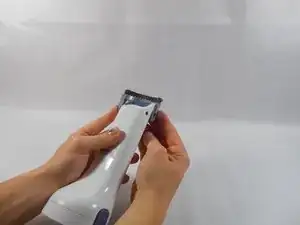

  3. jb3Jam2YmBUaBYrC

    • Remove one of the leg prongs from the hole it is inserted into.

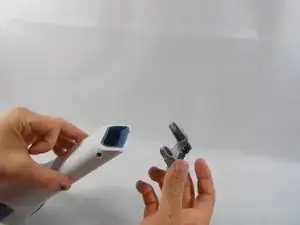

  4. looHiR1Aas1fmEWo

    • Rotate the free leg forwards or backwards from the hole.

    • This relieves the pressure from the inside of the legs allowing you to freely remove the last leg from its hole.

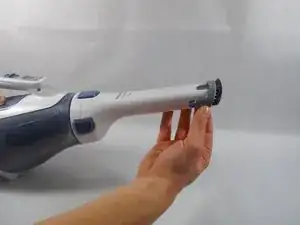

  5. 4krLXCLW1ggIAtEI

    • Check each leg hole for debris and clear whats needed.

    • Insert a leg of the new brush into the correct hole, so the brush will click into its erect position.

    • Slide the other leg into its respective hole.

Abschluss

To reassemble your device, follow these instructions in reverse order.
