Black and Decker DustBuster 15.6V Suction Rubber Seal Replacement

Geschrieben von: Roberto Perez
  • Kommentare: 1
Black and Decker DustBuster 15.6V Suction Rubber Seal Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 6 Minuten

Einleitung

Replacing suction seal which is the cause of loss performance and/or air leak.

  1. twDV6UoFNxbNpuCV

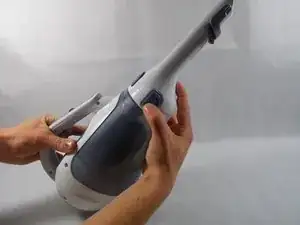

    • Press to blue unlock buttons at the base of the nozzle in word and pull forward .

  2. 4HgoHgWAPGVjQ6BR

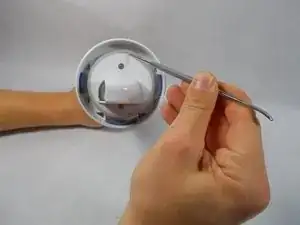

    • Locate rubber suction seal.

  3. WAAQYQRarsJEo1F3

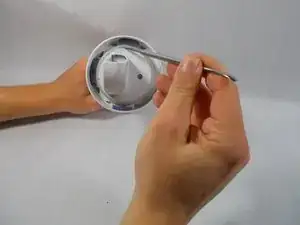

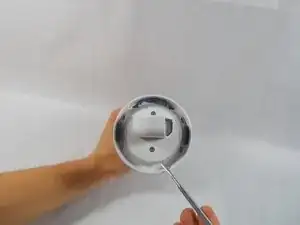

    • Insert a metal spudger in between white plastic and rubber seal and gently drag spudger around see you lifting gently much like opening a can.

  4. Nhh13KwM2FZHMlGn

    • Align slits on the bottom of new suction seal then press into those slits.

    • The seal should not come above white plastic.

    • If the nozzle does not connect to vacuum barrel, readjust seal and try to attach nozzle until it snaps into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
