Black and Decker Dustbuster CHV1510 Filter Replacement

Geschrieben von: Miguel Vilao
  • Kommentare: 0
Black and Decker Dustbuster CHV1510 Filter Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Replacing the filter is a tool-less process. You will be able to complete this process in fairly short time. Replacing the filter regularly ensures that your dustbuster works properly.

  1. aQLcjofNL1PqZVKK

    • Press the buttons with unlock symbols on both sides of the nozzle.

    • Pull the nozzle upward.

    • The other button cannot be seen on the image.

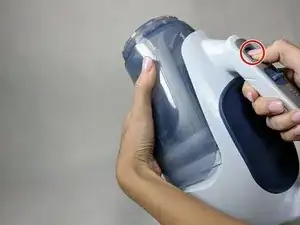

  2. npy3KWlO43QSxTlI

    • Press the button that reads "filter".

    • Pull the blue filter cover upward.

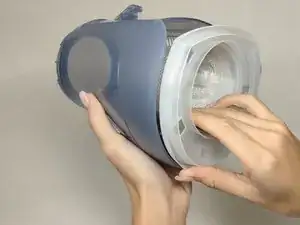

  3. eDADdvy5RjAHmGZm

    • Holding the blue filter cover firmly, pull filter toward you.

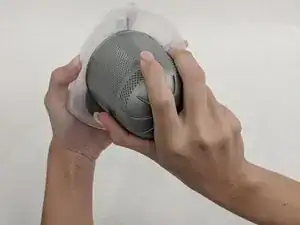

  4. psRSyn6uwaJHLKB5

    • Turn the gray plastic filter clockwise and pull it upward.

Abschluss

To reassemble your device, follow these instructions in reverse order.
