Einleitung

Before using this device, make sure you learn how to disassemble the product from the following guide. Then, wash all the parts to extend life of the unit.

  1. 4KBmHPGF4ScoP4NA
    4KBmHPGF4ScoP4NA
    KTLlEAQ3QySfEAFT

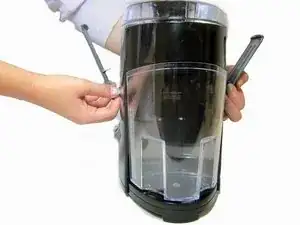

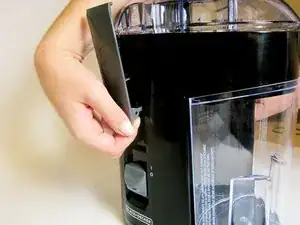

    • To undo the locking latches: Pull outwards at the bottom of each latch to detach them from the groove on the cover .

  2. v4GN2DRPLUJXRnZn
    v4GN2DRPLUJXRnZn
    3JZZ1nQmJrhbQKby

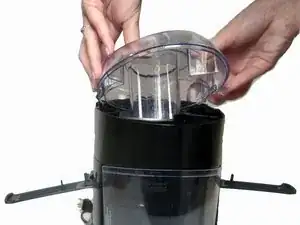

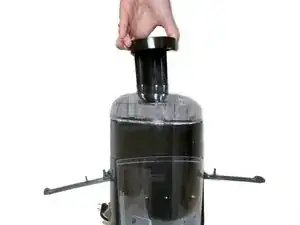

    • To remove the cover: Take out the feeder, hold the chute firmly and pull up the cover.

  3. 1T5YAmPSwMk1idZO

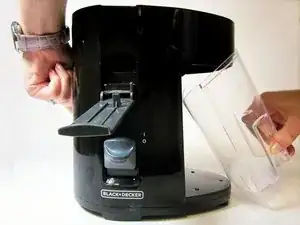

    • To remove the pulp container: Hold the juice spout with one hand and the back edge of the pulp separator with the other hand. Pull it up while making sure that the cutter/strainer is kept in place

  4. xCNfBFBPvJdWWbOn
    xCNfBFBPvJdWWbOn
    HOjuGTRPgBanbWS5
    NZfKMTtTdNQOKA2Y

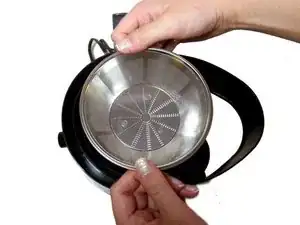

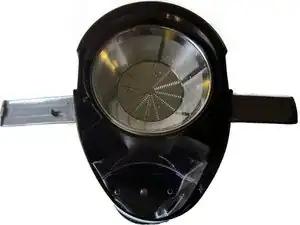

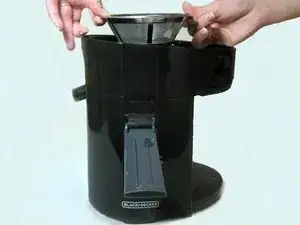

    • To remove the cutter/strainer: Hold the juice spout with one hand and clutch the edge of the cutter/strainer with the other hand; pull it out slowly.

    • ' The teeth on the cutter/strainer are very sharp. '

  5. t4P2JwtnFnBUQuLU

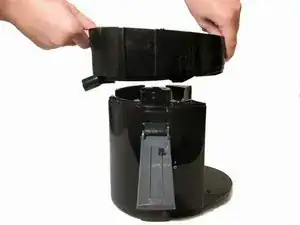

    • To remove the pulp separator: Hold the sides firmly and pull the container out.

Abschluss

To reassemble your device, follow this guide in reverse order.
