Black and Decker JS660 Angle Lock Replacement

Geschrieben von: Andrew Khouri
  • Kommentare: 0
Black and Decker JS660 Angle Lock Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

50 Minuten

Einleitung

This guide will give instructions on how to change out the lever that locks the jigsaw to the cutting angle desired.

  1. poaf5emkBwBqUCpn
    poaf5emkBwBqUCpn
    VWAeK3xYclpFaipA

    • Unscrew the nine screws to open up the jigsaw

  2. X522ZVbqMWsv1bWg

    • Unscrew the base by unscrewing the two shown in the picture.

  3. WPZURTvmkAJEqPEH
    WPZURTvmkAJEqPEH
    K4OOhqssM2ffFDlV

    • The Jigsaw base will now be off. With the new base simply do the reverse order of steps.

    • Assemble the base on a steady surface.

  4. Bbgr6qZTPnjLNj5R
    Bbgr6qZTPnjLNj5R
    sDkZlQW2CTQEdA4C
    ILy12dwHdISpeoPR

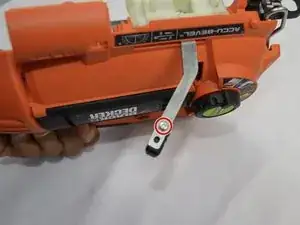

    • Remove the screw marked and the lever will slide out easily

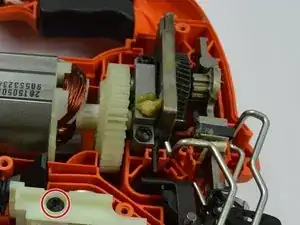

    • The black screw must next be removed.

    • After removing the screw the lever will slide out of the jigsaw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
