Black and Decker JS660 Base Replacement

Geschrieben von: Andrew Khouri
  • Kommentare: 0
Black and Decker JS660 Base Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

20 Minuten

Einleitung

In the unfortunate case of where your black and decker jigsaw base is broken this guide is here to show you how to replace the base. This will require you to remove the existing plate and replace it. Following the guides will show you how to replace the base without damaging any other parts of the jigsaw.

  1. poaf5emkBwBqUCpn
    poaf5emkBwBqUCpn
    VWAeK3xYclpFaipA

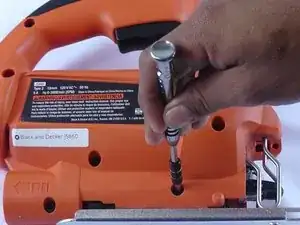

    • Unscrew the nine screws to open up the jigsaw

  2. X522ZVbqMWsv1bWg

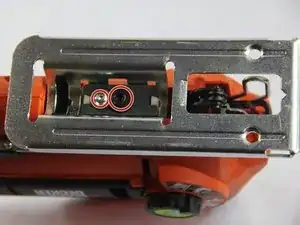

    • Unscrew the base by unscrewing the two shown in the picture.

  3. WPZURTvmkAJEqPEH
    WPZURTvmkAJEqPEH
    K4OOhqssM2ffFDlV

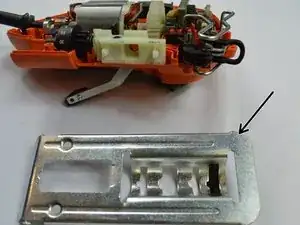

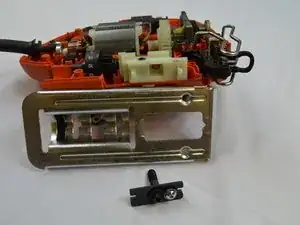

    • The Jigsaw base will now be off. With the new base simply do the reverse order of steps.

    • Assemble the base on a steady surface.

Abschluss

To reassemble your device, follow these instructions in reverse order.
