Black and Decker JS660 Blade Holder Replacement

Geschrieben von: Andrew Khouri
  • Kommentare: 1
Black and Decker JS660 Blade Holder Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

1 Stunde

Einleitung

The jigsaw blade may become loose or is not fastening correctly when using the blade. This guide will identify the problem and show the user how to fix and interchange the holder.

  1. poaf5emkBwBqUCpn
    poaf5emkBwBqUCpn
    VWAeK3xYclpFaipA

    • Unscrew the nine screws to open up the jigsaw

  2. X522ZVbqMWsv1bWg

    • Unscrew the base by unscrewing the two shown in the picture.

  3. WPZURTvmkAJEqPEH
    WPZURTvmkAJEqPEH
    K4OOhqssM2ffFDlV

    • The Jigsaw base will now be off. With the new base simply do the reverse order of steps.

    • Assemble the base on a steady surface.

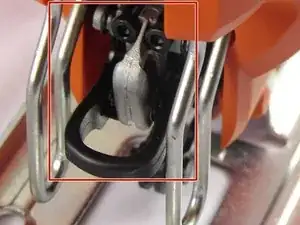

  4. BSeNAC6PLKybYUNA
    BSeNAC6PLKybYUNA

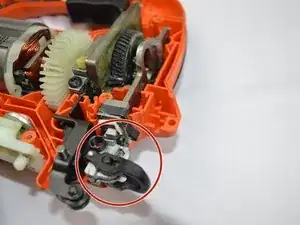

    OLtArEqZITeHNOGW

    • You will need to take out the entire blade clamp shown.

    • The plastic part is fragile, easy to break

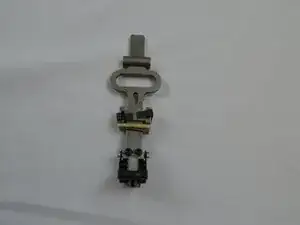

  5. AkuCNcKnXCs34U2Q
    AkuCNcKnXCs34U2Q

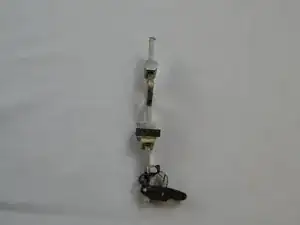

    PW11KVHiXEwjTciy
    k1EIatGwC4NA6ntf

    • Showing the entire blade clamp removed from the device.

    • Apply some oil grease if dry/needed

Abschluss

To reassemble your device, follow these instructions in reverse order.
