Black and Decker JS660 Shoe Plate Replacement

Geschrieben von: matt murray
  • Kommentare: 1
Black and Decker JS660 Shoe Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

If the saw has a broken shoe plate, this guide will show you how to replace it. It is simply two screws that must be removed in order to remove the entire plate.

  1. PUAuuYYRveSeOsLt
    PUAuuYYRveSeOsLt
    GQOOKQ3Z1EuCYufl

    • Remove the nine torx 15.875mm screws on the front of the jigsaw using a T-15 torx screwdriver.

  2. xScIYBVPFmEIQWJA

    • By separating the two housing halves, carefully remove the top plate.

  3. vslPLKbfqKU3n2LW

    • Remove the 6.3mm hex screw on the left with a H.30 hex screwdriver.

    • Remove the reverse threaded 6.9mm black hex screw on the right with a H.40 hex screwdriver.

  4. ZVJEPFIjb1GK4VL6

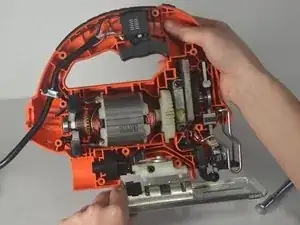

    • Simply remove the shoe plate by pulling it down and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
