Einleitung
This guide will teach the user to replace the trigger of the saw. The trigger replacement is the most electrically connected part in the saw. Before replacing the whole trigger check to make sure all the leads are properly attached. If that does not solve the issue, then proceed with the replacement of the trigger.
Ersatzteile
-
-
Remove the nine torx 15.875mm screws on the front of the jigsaw using a T-15 torx screwdriver.
-
-
-
Remove the two 12.7mm phillips head screws holding the power cord in place with a PH2 Phillips head screwdriver.
-
-
-
Remove the two 6.35mm flat head screws on the trigger with a 2.5 flat head screwdriver to disconnect the white and black cords.
-
-
-

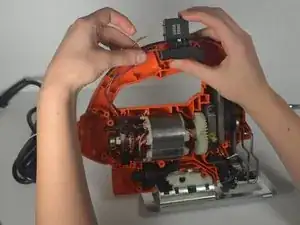

Use tweezers to press down on these tabs on the trigger assembly.
-
While the tab is depressed, the cord can be pulled out of the housing by using a moderate amount of force.
-
Each cord needs to be done separately.
-
To reassemble your device, follow these instructions in reverse order.
