Einleitung

If the chuck is jammed or not tightening up; the guide will illustrate a step by step process to help solve the problem.

  1. jMgkkbpVbII4U1GU

    • For this guide we will need to use a 1.0 mm phillips #1 screw.

    • There are a total of thirteen screws that need to be removed in order to open the drill and access the interior components.

  2. Pd5hCDh3EggjGOIt

    • Remove the four screws on the back top side of the drill.

  3. VUm3BDL165D5QNaF

    • Remove the four screws that connect the chuck to the drill.

  4. 6BlOjfEErWYA4nCH

    • Remove the five screws on the front side of the drill.

  5. 6CMopeSCWC2FqVeF

    • Gently grab both sides of the drill casing, and separate both sides from each other.

  6. GsOhQXeFxOsmAmha

    • At this point you should be able to separate both as illustrated.

  7. nHwoZs2d34ncHoLE

    • Now all the components of the drill are visible and can be accessed.

  8. aJ426ylCExBYBtPH

    • After following the prerequisite, the drill is now open.

    • The interior components can now be accessed.

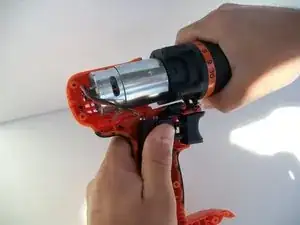

  9. gnayRi21HT4kVkL1

    • Separate the top part(the chuck and motor) from the rest of the drill.

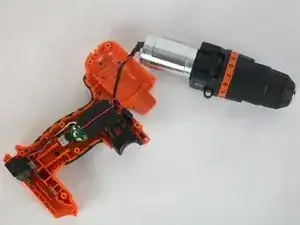

  10. a11TlOEC3iSieeA2

    • While separating the top from the rest, do this carefully without over stretching the wires so that no connection is damaged.

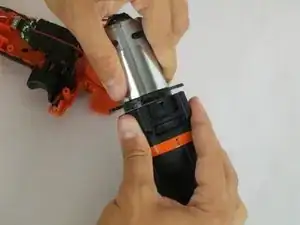

  11. OF3sKsBMfsDUBckj

    • To remove the motor simply twist as illustrated in the picture.

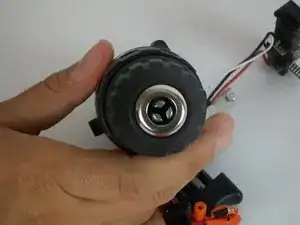

  12. WtNBD4oxJr6qoD3w

    • The three metal tips in the front are the ones that are controlled by the chuck to hold and release the screw.

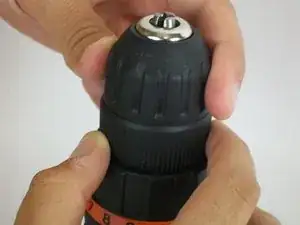

  13. DsuJnTeZDaQJVTR6

    • To test the chuck twist the head as shown in the illustration.

    • If the three metal tips don't move upon twisting then the chuck isn't working effectively and will need to be replaced since the inside of the chuck can't be accessed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
