Black and Decker LDX 120C Gear Replacement

Geschrieben von: jeffrey zakka
  • Kommentare: 1
Black and Decker LDX 120C Gear Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

If the drill isn't working effectively it might be because of the gears, so this guide will show a step by step process on how to access the gear and to change necessary components.

  1. jMgkkbpVbII4U1GU

    • For this guide we will need to use a 1.0 mm phillips #1 screw.

    • There are a total of thirteen screws that need to be removed in order to open the drill and access the interior components.

  2. Pd5hCDh3EggjGOIt

    • Remove the four screws on the back top side of the drill.

  3. VUm3BDL165D5QNaF

    • Remove the four screws that connect the chuck to the drill.

  4. 6BlOjfEErWYA4nCH

    • Remove the five screws on the front side of the drill.

  5. 6CMopeSCWC2FqVeF

    • Gently grab both sides of the drill casing, and separate both sides from each other.

  6. GsOhQXeFxOsmAmha

    • At this point you should be able to separate both as illustrated.

  7. nHwoZs2d34ncHoLE

    • Now all the components of the drill are visible and can be accessed.

  8. bkdK2KA1XHQu3jcl

    • After following the prerequisite guide you will be able to access the interior components of the drill.

  9. sabJfcPaxWEJIDsW

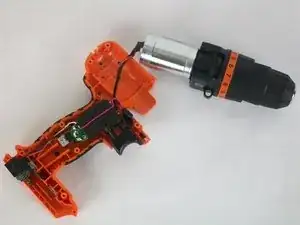

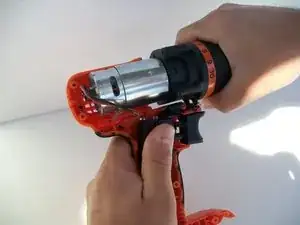

    • Gently remove the top part (motor and chuck) from the rest of the drill.

  10. 324FW5ivXZ6YFiqP

    • Make sure you do that with care so that the connection doesn't get damaged.

  11. PGpWJFOyGMviic4U

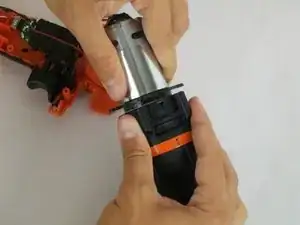

    • To be able to get into the gears you will need to separate the motor from the rest.

    • And then you will be able to access the gears which is located between the motor and the chuck.

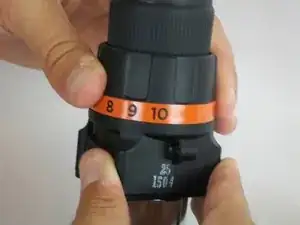

  12. oNiBTXejSDpfiKV3

    • Twist the gauge to change between the gear.

    • If you don't hear a clicking sound then check the gears.

  13. vKcPotJA16cOsnHq

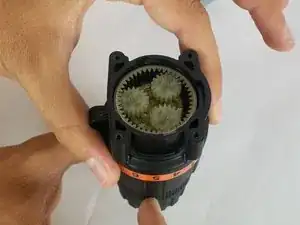

    • Twist the gear and see if the three gears rotate without jamming.

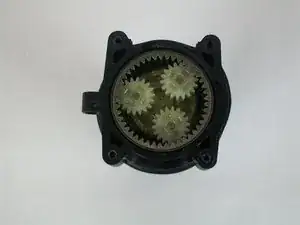

  14. rK4UySFxKfpCELZe

    • Check if any gear is chipped or broken in any way.

    • If it is then you will need to change the broken gear.

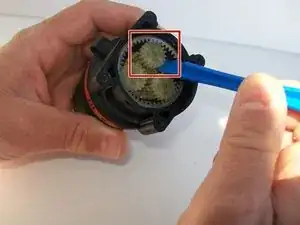

  15. sFceSfxhQO4XMndl

    • Using the spudger place it under the gear as illustrated.

    se pueden cambiar esos de plastico por unos metalicos??

    Smaily Dragon Komodo -

  16. 2Ev6QYqDGUnjk4Fo

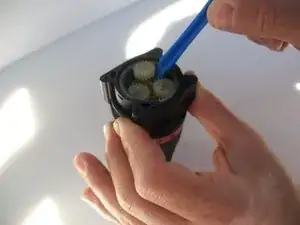

    • The gear will remove with just a little amount of force.

  17. yPOPWr3mQqJYIEsW

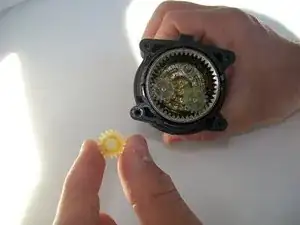

    • The gear has been removed and now can be replaced by another gear.

Abschluss

To reassemble your device, follow these instructions in reverse order.
