Black and Decker LDX 120C Motor Replacement

Geschrieben von: jeffrey zakka
  • Kommentare: 5
Black and Decker LDX 120C Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

In this guide the user will be able to follow a step by step process on how to open the drill and to check on the motor.

  1. jMgkkbpVbII4U1GU

    • For this guide we will need to use a 1.0 mm phillips #1 screw.

    • There are a total of thirteen screws that need to be removed in order to open the drill and access the interior components.

  2. Pd5hCDh3EggjGOIt

    • Remove the four screws on the back top side of the drill.

  3. VUm3BDL165D5QNaF

    • Remove the four screws that connect the chuck to the drill.

  4. 6BlOjfEErWYA4nCH

    • Remove the five screws on the front side of the drill.

  5. 6CMopeSCWC2FqVeF

    • Gently grab both sides of the drill casing, and separate both sides from each other.

  6. GsOhQXeFxOsmAmha

    • At this point you should be able to separate both as illustrated.

  7. nHwoZs2d34ncHoLE

    • Now all the components of the drill are visible and can be accessed.

  8. pGcr3XI5LRAHeQ42

    • After following the prerequisite guide the interior components can now be accessed.

    • The motor is the silver cylinder in the top part of the drill.

    I have an ldx120. There is no “c”, will this motor work with mine?

    Mitch Ward -

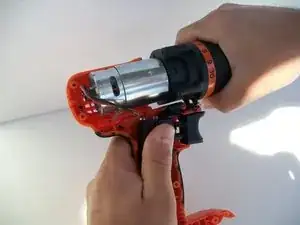

  9. l2ECBXdfAU2CZBSo

    • Separate the top from the rest of the components.

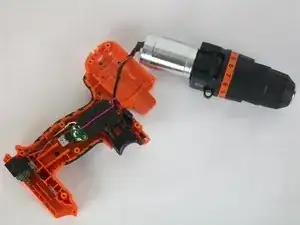

  10. VsJUdsAlVEjfEWyt

    • Do this carefully so that no damage is done to the connection.

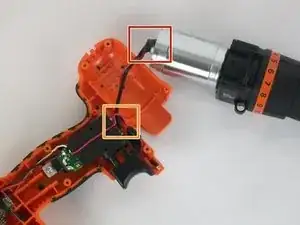

  11. hjpDuXwVUVsAodRJ

    • Check if the connection from the motor to the trigger is connected.

    • Then check if the connection to the chip is not intact.

    • If the connection is okay then the motor is probably weak and needs to be replaced.

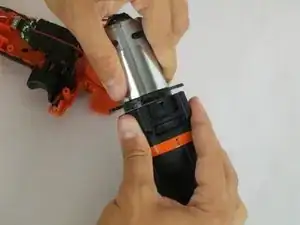

  12. ISFfEbnEl6mpoyhR

    • To remove the motor simply twist as illustrated in the picture.

    • The way the motor is designed for the LDX 120C is that it is protected inside the aluminum cylinder which works as a magnet.

    • The inside part of the motor can not be accessed, so you will have to replace the entire motor.

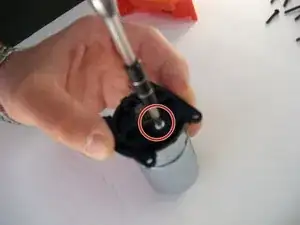

  13. mQwmrOd5Qey4grcN

    • Unscrew the black plastic support from the motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
