Black and Decker LI4000 Battery Replacement

Geschrieben von: Nicholas Kniola
  • Kommentare: 6
Black and Decker LI4000 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

Once you have removed the exterior casing, this guide will show you how to remove and replace the lithium-ion battery in your LI4000.

  1. RpqYCfZAK4N4kISb
    RpqYCfZAK4N4kISb
    AdP6wTfYRCpDJQ2I
    i5G6STVF5VLo6ZtL

    • Remove the stickers found on the bottom and sides of the LI4000, using a spudger.

  2. Tf1ScHjCQsh62TtH

    • Remove all six of the 12-mm long case screws with a Philips #1 Screwdriver. These screws can be found on the side of the LI4000 with the "Warning" sticker.

  3. K3pMoKDYCEbEHkRX
    K3pMoKDYCEbEHkRX
    uAj5arBnE4cOFMnG

    • Remove the two screws that are 4-mm Hexagonal #2.5. These are very small case screws that can be found underneath the two stickers from Step 1.

  4. Qsbb26vNMLjL2CU2
    Qsbb26vNMLjL2CU2
    mmOPnDbZCJptdMEM

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The metal spudger is great when you need serious prying power, but the regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • Pry on the seam as shown with a Spudger, in order to get the top casing loose.

    • Pull the two sides apart while making sure the side that you are removing is the one with all of the case screw holes.

    • It is good practice to remove the top connection of the battery as shown in the third image, as this will be the first step to replacing any of the components for this screwdriver.

  5. LutveadnwfAPpXZK

    • Locate the battery. The cardboard covered cylinder is the rechargeable battery.

  6. XlBL4SbQTH1hsOS2
    XlBL4SbQTH1hsOS2
    GZcyqAsFJXyHopjl

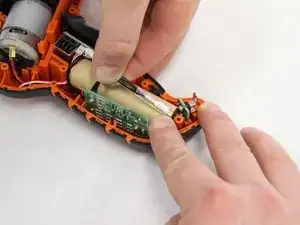

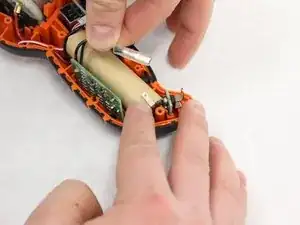

    • Detach the contact by pulling the contact away from the battery.

  7. RXCNxCjVqVDkPyMY
    RXCNxCjVqVDkPyMY
    yEB6ApoujBFq1gyu

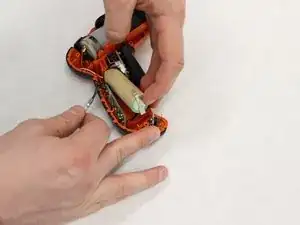

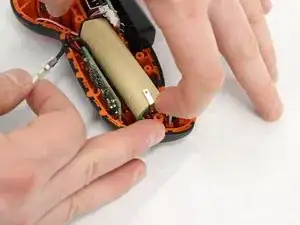

    • Gently lift the end of the battery out of the plastic casing

  8. GSJbWoO52BILELjJ

    • Locate the other contact on the rear side of the battery.

  9. 4XXGas2SSeA6JqDW
    4XXGas2SSeA6JqDW
    rvZGbAKETsEFoxnb

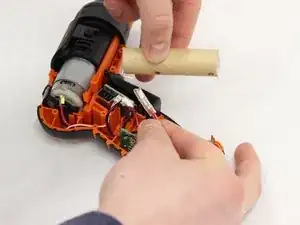

    • Detach the contact by pulling the contact away from the battery.

  10. QgM4m2EyrPqYFSwj

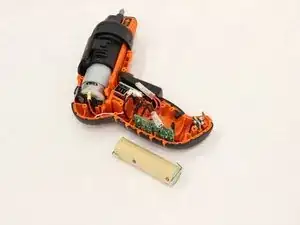

    • To install a new battery, repeat the steps in reverse order with a new battery.

    No hay datos de tipo de bateria

    Mark -

Abschluss

To reassemble your device, follow these instructions in reverse order.
